Fit the package to the horizontal sealing path
The I version is the horizontal FRM-1010 model. Its conveyor supports the bag as the top passes through the sealing and coding area.
Review the filled package shape, bag opening and product movement with a sample. Confirm the sealing-line position and support needed to keep product out of the seal, especially where a package contains loose or mobile contents.

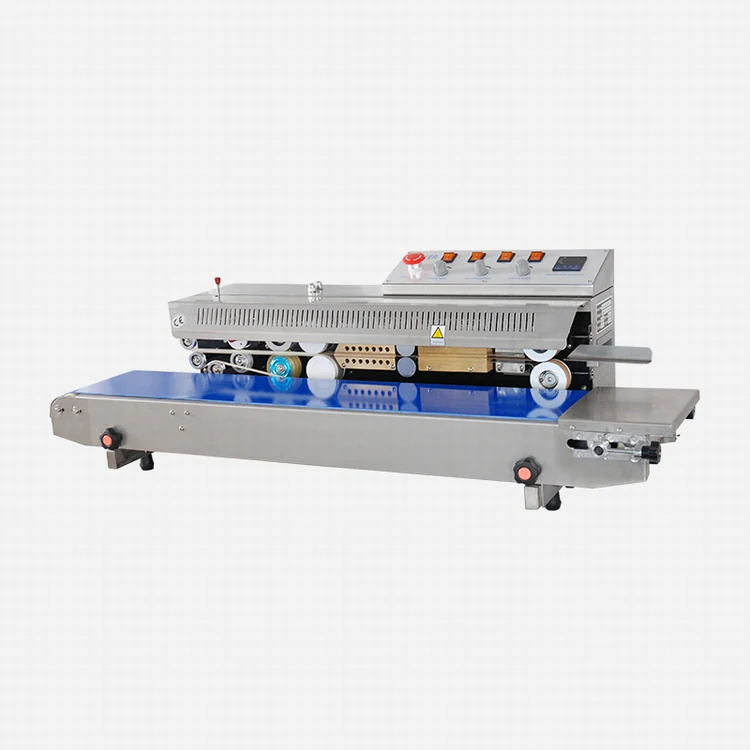

Hualian FRM-1010I manufacturer product photograph. This horizontal reference does not include the FRMC variant’s air-suction function by assumption.
Trial the film, speed and code together
The source lists continuous speed control and solid-ink coding. Its operating ranges are machine limits, rather than proven settings for every film or a guaranteed line output.
Provide film structure, thickness, intended code and required production rate. Agree seal and code checks after a trial, then document useful settings and consumables. Request the counter explicitly if needed, because it is an optional source item.
Confirm the model suffix and workstation layout
The family includes vertical and floor-standing machines, plus a separately named air-suction version. Those features should not be copied into an FRM-1010I order.
Use the drawing to approve conveyor height, bag support and operator access. Confirm the electrical version, ink rollers, characters, belts and replacement procedure, with an exact packing list for the selected build.

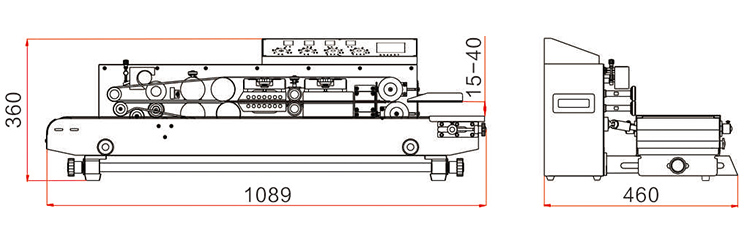

Hualian FRM-1010I manufacturer outline drawing for workstation planning.
Planning your configuration
- Send bag samples and filled dimensions/weight, film structure, code format and target rate. Agree seal acceptance checks and actual operating settings.
- Total conveyor loading is not a per-package capacity. Confirm supply, optional counter and consumables; air suction belongs to another named family variant. No stock or manufacturer-authorised GLOBSEEK relationship is asserted.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
