Select the horizontal I version for the bag presentation
FRB-770I is the horizontal version of the FRB-770 family. The vertical and floor-standing entries on the same table have different sealing heights and envelopes, so the model suffix should remain explicit.
Check the filled bag shape, available headspace and travel on the small conveyor. Provide samples to assess support and tracking before selecting the sealing position or adding a product-feeding arrangement.

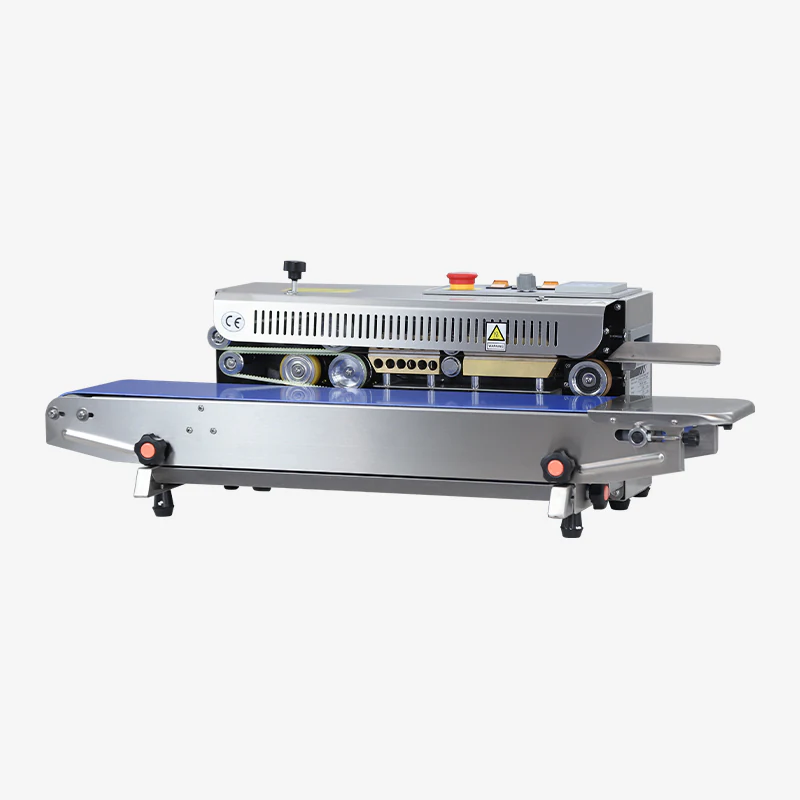

Hualian FRB-770I manufacturer product photograph. Optional marking and counting are not assumed included.
Agree the seal trial and any emboss marking
Hualian describes continuous temperature and speed control, with an embossing wheel and counter listed as options. This is not the solid-ink coding package described for another model family.
Specify film structure, thickness and required line rate, then agree a trial for seal integrity and bag tracking. If a date or batch mark is needed, confirm the optional wheel, character format and readability on the actual bag.
Complete the workstation and service package
The I-column dimensions are 844 × 375 × 310 mm, with 21.5 kg net mass. Include bag support, operator access and maintenance clearance when planning the workstation rather than using the machine footprint alone.
Confirm the electrical build, selected motor/speed alternative, replacement belts and any optional counter or marking parts. Request operating and changing instructions plus a final packing list matched to the quoted model.

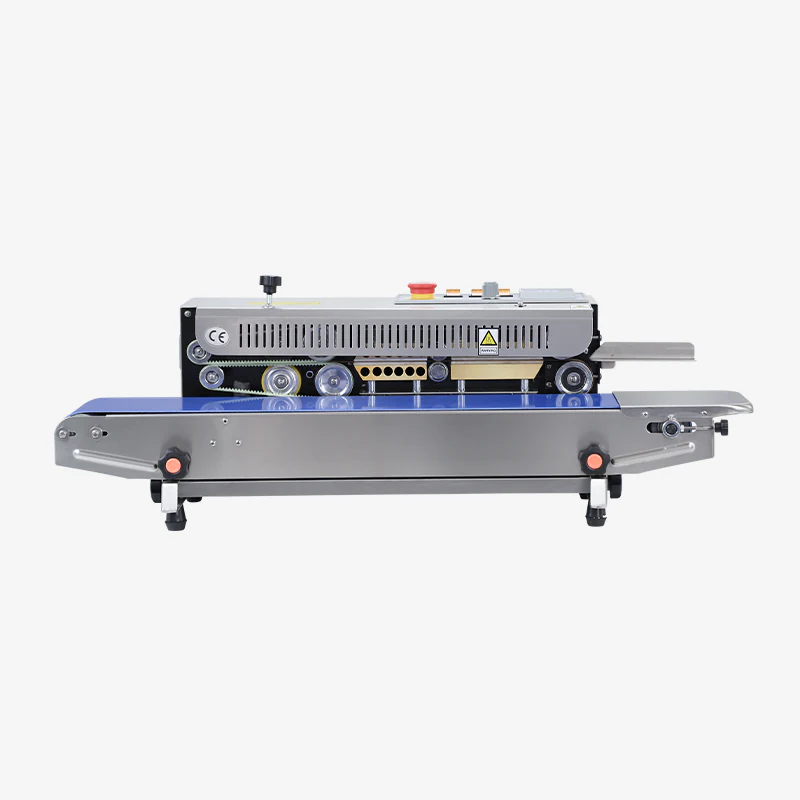

Front manufacturer view of FRB-770I. Confirm the selected options and supplied consumables in the order.
Planning your configuration
- Provide bag samples, film data, filled dimensions/weight and marking requirements. Confirm actual operating settings through a package trial.
- Total conveyor load is not a per-bag capacity. Marking/counter options, motor/speed and supply need confirmation; no stock or universal package compatibility is asserted.
