A flat die forms the pellet
The mill applies pressure between rollers and a perforated flat die, forcing prepared material through the die holes. The emerging strands are cut into pellets. Die selection therefore relates to both pellet diameter and the behaviour of the feedstock, rather than diameter alone.
The equipment photograph comes from the GEMCO B-series catalogue. It identifies the family arrangement, not the physical dimensions or finish of a confirmed ZLSP200B available for sale. The manufacturer process collage shows pellet extrusion and die holes and is retained as a separate operating reference.

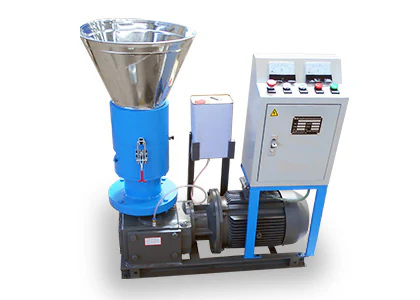

GEMCO B-series electric pellet mill catalogue photograph. Series reference; exact ZLSP200B appearance is unconfirmed.

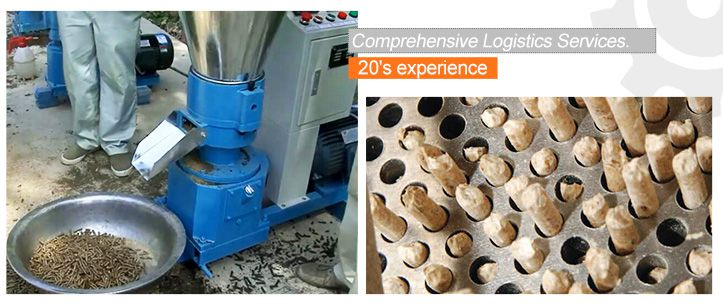

Original GEMCO process collage showing a small pellet mill and pellets emerging through a die. Family/process imagery.
Keep wood-pellet and feed-pellet ratings separate
The ZLSP200B wood-pellet table lists 80–120 kg/h with a 7.5 kW three-phase motor. This is a reference for the manufacturer’s stated use, not a fixed output for every wood species, particle distribution or moisture level.
Pellet mills can also be marketed for animal feed, where different material properties and dies produce different ratings. A feed-pellet capacity should not be carried over into a wood-fuel enquiry. Specify the intended biomass and end product before comparing machines.
Define the preparation and downstream work
Sawdust that looks similar can behave differently under pressure. Send the material species, particle-size range, moisture information and desired pellet size so a trial can establish a suitable die and operating method. Oversized pieces or unsuitable moisture may require preparation equipment.
GEMCO’s wider range includes other drive arrangements and larger lines. This record covers the electric ZLSP200B reference only. Agree whether screening, cooling, fines return, dust control and bagging are separate equipment, and plan access around the mill beyond its package dimensions.
Planning your configuration
- Request a trial using representative biomass and agree the measurement basis for output and pellet durability. Confirm the die, wear parts and electrical supply for the exact build.
- Package dimensions are not an installed-layout drawing. The series photographs do not prove a specific machine’s year, condition, stock, inspection or GLOBSEEK manufacturer relationship.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
