Industrial Quality Testing
Portable Ultrasonic Thickness Gauge
Non-destructive wall-thickness measurement for metal components and corrosion checks.Request a quote ↗Tell us your application and requirements so we can help source suitable equipment from China.
Equipment overview
What this machine is built to do.

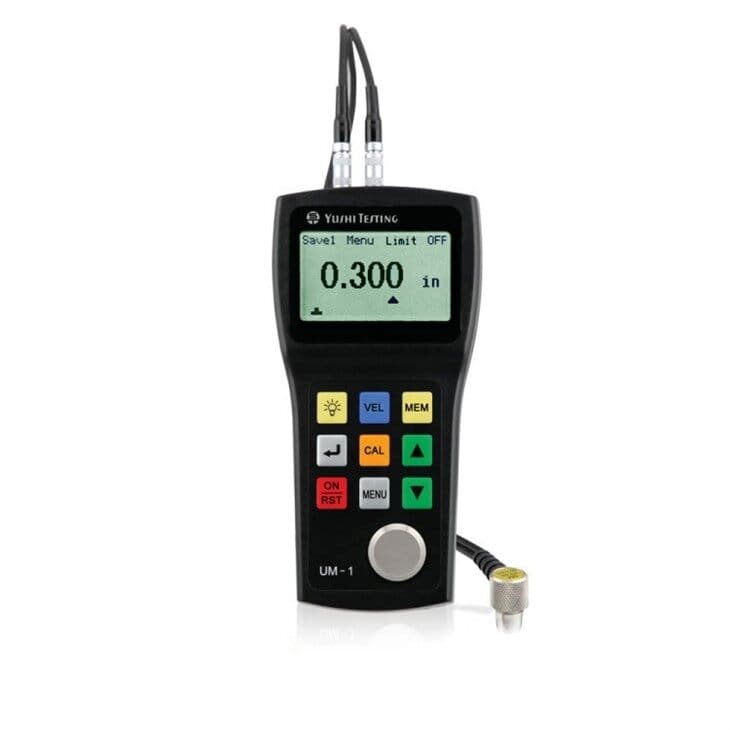

A portable ultrasonic thickness gauge measures material thickness using an ultrasonic probe. This equipment type is used when the opposite surface is difficult to access. Probe choice, material sound velocity and surface condition affect the measurement. Select the measuring mode and calibration approach for the material being checked; a through-coating function is a model-specific option, not a feature of every gauge. Reference image: YUSHI UM-1 ultrasonic thickness gauge with probe
Typical applications
- Pipe and pressure-vessel maintenance
- Workshop material checks
- Machinery inspection
Machine details
Technical specifications
- Calibration
- Zero and two-point calibration
- Reference model
- YUSHI UM-1 / UM-1D
- Measurement method
- Ultrasonic pulse-echo with a dual-element probe
- Standard measuring range
- 0.8–300 mm (Manufacturer reference for the UM-1 series; depends on material and probe. Not a guaranteed range for all equipment in this category.)
Manufacturer models to explore.
LANDTEK TM-8811 Ultrasonic Thickness Meter
Portable thickness and corrosion checks on suitable accessible parts, using a material-matched probe, reference and coupling method.
View model
LANDTEK TM-8812 Ultrasonic Thickness Meter
Spot thickness and corrosion checks on accessible vessels, tanks and fabricated parts, with a suitable probe, coupling and calibration for the material.
View model
LANDTEK TM-8812C Ultrasonic Thickness Meter
Portable thickness checks on suitable manufactured parts and accessible vessels, with probe selection, calibration and surface preparation matched to the material.
View model
