A combined route from paddy to white rice
KODI describes this model as a rubber-roll combined husking and milling machine. The equipment list includes a cleaning sieve, destoner, husker, paddy separator, rice mill, elevator, electrical controls and fan. The purpose is to link the main paddy-processing operations in a compact arrangement.
The manufacturer product illustration names NZJ15/15IIIAG-5 explicitly. It is appropriate for identifying the reference model, while the photographed detail collage helps show the controls, hoppers and individual working units. Neither image proves the condition or build of a particular available machine.

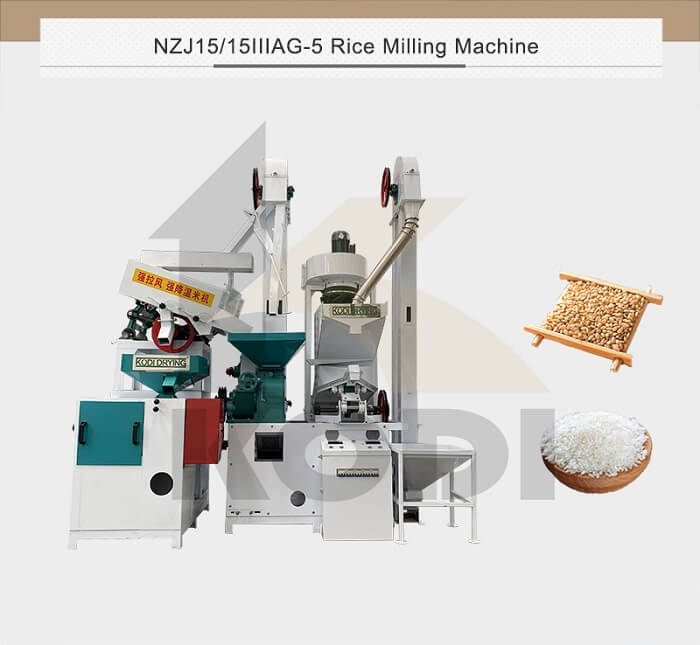

KODI manufacturer product illustration explicitly labelled NZJ15/15IIIAG-5.

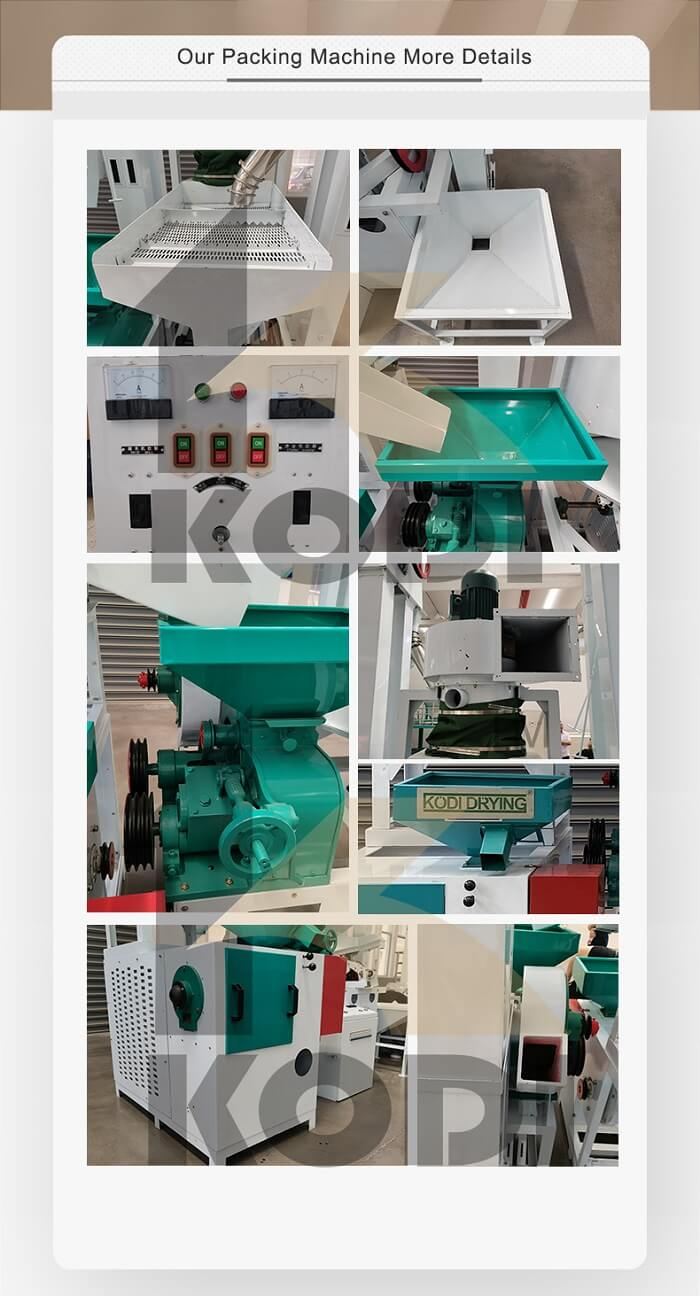

Manufacturer detail collage on the NZJ15/15IIIAG-5 product page; hopper, controls and processing-unit views.
Define where the base machine ends
The product page describes cleaning, destoning, husking, separation, milling and grading as the processing route. It also discusses connection to a mist polisher, colour sorter and automatic packing machine. Those additions should be specified explicitly; a workflow illustration is not an included-accessories schedule.
KODI publishes a spare-parts list with reference quantities. Rubber rollers, emery rolls, screens, belts and other wear parts are useful topics for a commissioning-spares request, but the page says the actual quantities depend on processing volume.

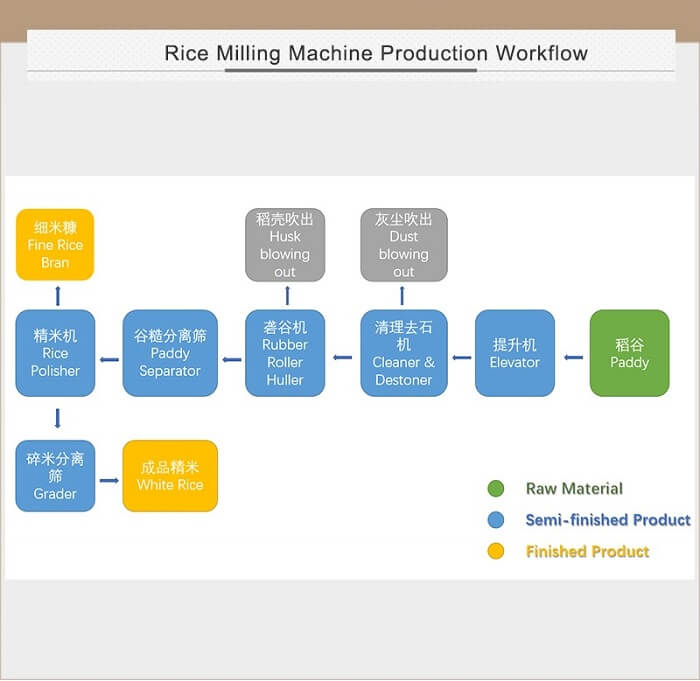

KODI rice milling workflow diagram. A process reference, not a confirmed included-equipment list.
Read the capacity and quality figures together
The exact model row lists 600–900 kg/h, 23.85 kW and a 1000 kg machine weight. Its three-metre-high outline still requires clearance for feeding, servicing and the selected handling arrangement. Confirm voltage and the complete motor and fan scope with the equipment schedule.
The same table gives milling yield and broken-rice figures without stating the paddy variety, moisture or test method. Use them as manufacturer reference values for an acceptance discussion. A representative paddy trial and agreed measurement method are needed before they become project performance criteria.
Planning your configuration
- State raw-paddy variety, moisture, cleanliness and the desired white-rice grade; specify whether capacity refers to input paddy or finished rice.
- Confirm base-machine equipment, dust handling, connection points, downstream finishing and packing as separate quotation items.
- Request an appropriate wear-parts package and operating documents for the exact supplied revision. This reference does not claim GLOBSEEK stock, manufacturer partnership, delivery history or inspection.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
