Use centrifugal concentration within a prepared circuit
A rotating bowl increases the effective centrifugal force on the feed, helping heavy particles concentrate while lighter material follows the tailings path. The system needs a prepared slurry and a defined concentrate discharge cycle, together with the required water supply.
The manufacturer exterior and cutaway illustrations show the STLB-family arrangement. They explain the housing, rotating bowl and drive rather than documenting the scale, finish or condition of a particular STLB60 available from GLOBSEEK.

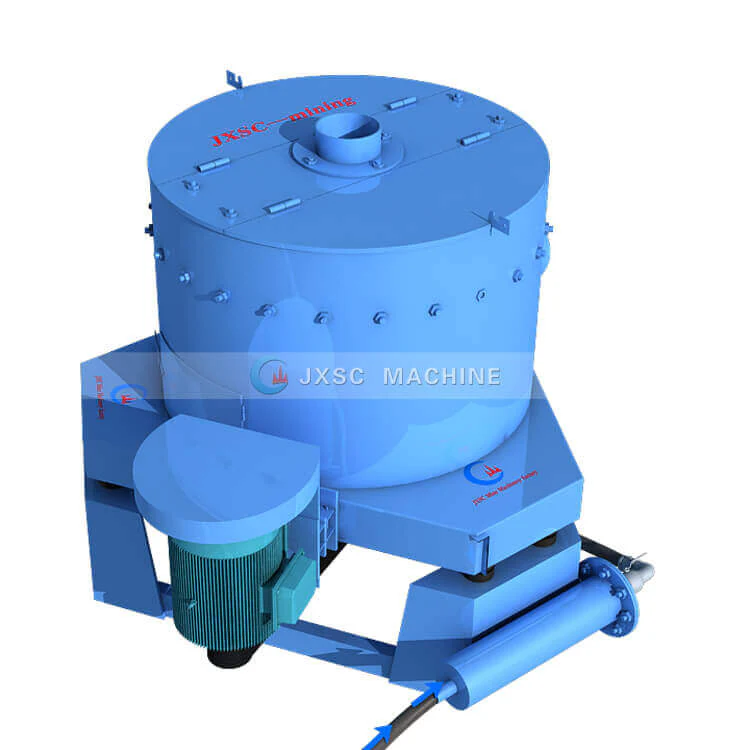

JXSC STLB-family manufacturer illustration. The image is a family arrangement, without a confirmed STLB60 scale or supplied build.

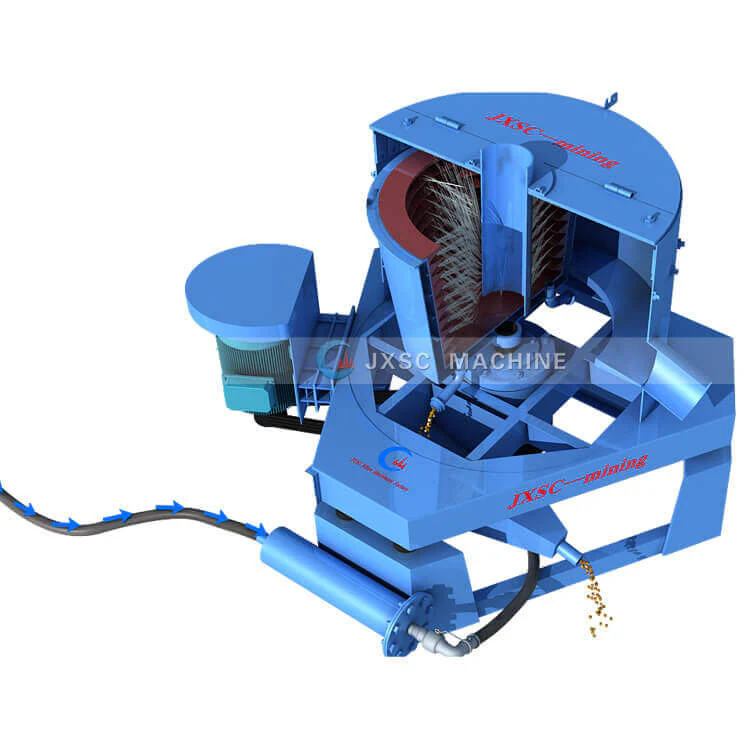

JXSC manufacturer cutaway illustration of the centrifugal concentrator family.
Read the STLB60 row without borrowing other variants
The STLB60 row lists an 8–12 t/h reference capacity, a 0–6 mm feed range and a 7.5 kW drive. Smaller and larger STLB models use different power, dimensions and rotational speeds, so a family photograph should not be used to infer those values.
The feed-size limit is a mechanical screening point. A useful gold-recovery application also depends on mineral liberation, particle-size distribution and how the heavy fraction behaves. Ask for a representative mineral trial before adopting any recovery or concentration target.
Settle water, discharge and concentrate handling
JXSC’s diagram separates the feed, tailings and concentrate paths and shows the water connection. Agree the fluidisation-water quality, pressure and flow, concentrate discharge method and collection arrangement as part of the circuit design.
The source publishes broad recovery claims and a back-water table that needs application-specific interpretation. Those values are not adopted as project guarantees here. An enquiry should instead define the feed, target concentrate, operating cycle and acceptance measurements used in a mineral test.

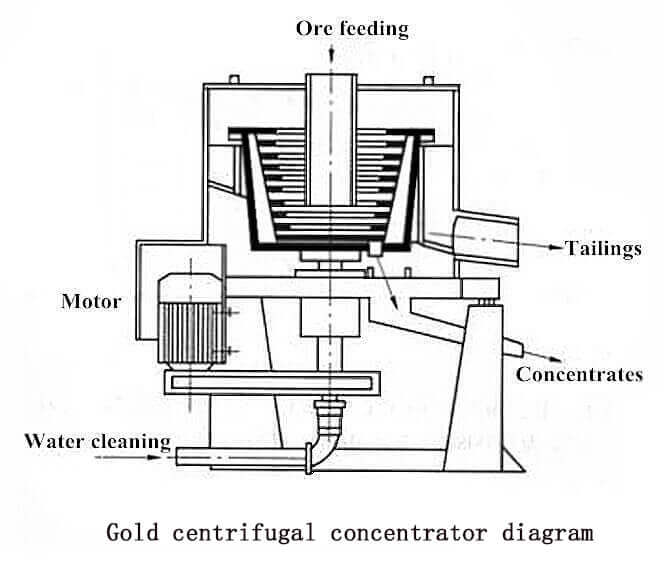

JXSC manufacturer operating diagram with feed, tailings and concentrate paths.
Planning your configuration
- Provide ore mineralogy, gold or heavy-mineral liberation, feed-size analysis, slurry concentration and required process duty. Ask for test results on representative material.
- Confirm water requirements, installation loads, power, discharge controls and wear parts for the STLB60 build. No guaranteed recovery, stock or delivered-project claim is implied.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
