Match the CR518 package to the injectors repaired
Panda Diesel describes common-rail injector performance checks and piezo support on the CR518 page. Those functions should be mapped to actual part numbers and the required test plans rather than a broad promise to test every injector from a named brand.
Send the workshop’s injector list and repair workflow. Agree the holders, connectors, software routines and coding/report outputs supplied for that list, then request a representative demonstration before accepting the package.

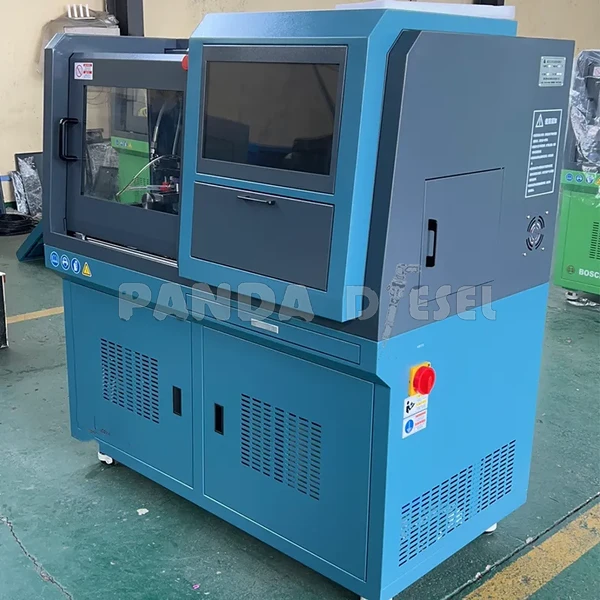

Panda Diesel manufacturer CR518-page reference build. Confirm the exact enclosure and supplied dimensions in the quotation.
Define pressure, fluid temperature and calibration checks
The manufacturer explicitly states a rail-pressure ceiling up to 2700 bar. That limit is not a test setting for every injector, and the relevant pressure, timing and fluid conditions should come from the supported test procedure.
Industrial cooling is listed as optional. Describe test duration and daily duty, and confirm the required temperature control, calibration and repeatability checks. No continuous-duty temperature or universal measurement-accuracy guarantee is adopted from the marketing text.
Specify the electrical and data-support build
The model table gives 5.5 kW, a 30 L tank and electrical alternatives. Confirm the actual phase, voltage, frequency, connection and installation needs, together with the final 400 kg reference mass and model drawing.

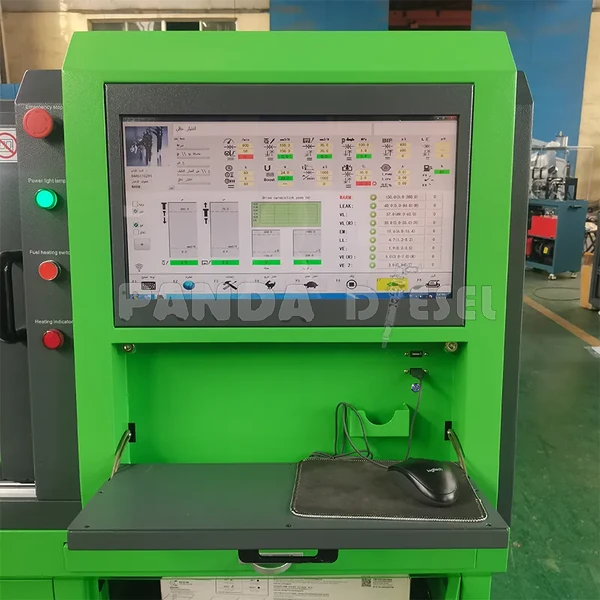

The second source photograph shows a control interface on a different reference enclosure. A screen is not proof that every software option is included; agree licences, updates, test-data scope, service parts and commissioning responsibilities explicitly.
Manufacturer CR518-page control-interface photograph from a different reference build. It is not another view of the blue unit.
Planning your configuration
- List injector part numbers, required tests/coding and operating duty. Confirm fixtures, supported plans and a demonstrated calibration/measurement procedure.
- Confirm electrical, cooling, software and service scope. Manufacturer interface photographs and pressure limits do not establish stock, included options or independently verified GLOBSEEK test results.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
