Define the injector and pump work the bench must cover
The CR220 combines an injector working area with a pump-drive test arrangement. Panda Diesel names common-rail and piezoelectric injector functions and several common-rail pump families on its product page.
Make the enquiry specific to the part numbers repaired by the workshop. Ask which connectors, mounting brackets, high-pressure connections and software routines are included for those parts, and identify any functions supplied as additional modules.

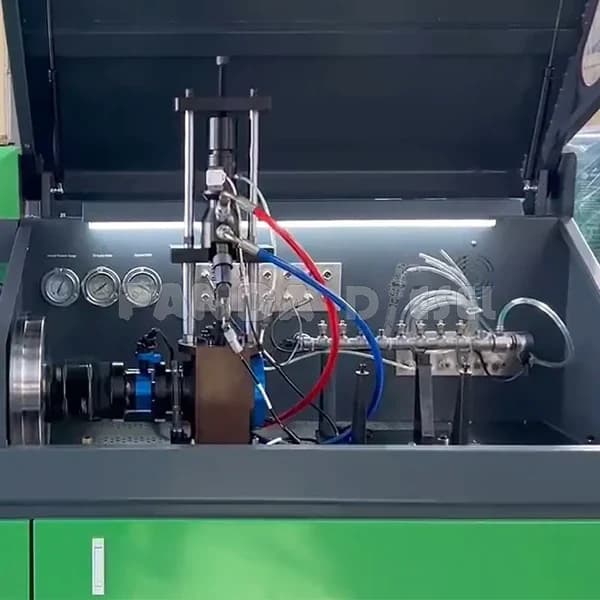

Panda Diesel product photograph on the CR220 page. The illustrated components and test setup require an agreed included-parts list.
Agree a measurement and acceptance procedure
The official listing identifies a glass-tube measurement configuration. A useful workshop package also needs the appropriate test fluid, temperature control, calibration method and a defined measurement procedure for the parts being tested.
Request a demonstration using representative injectors and a pump from the intended repair range. Agree how delivery, return flow and repeatability are checked, and what report or coding output is available; a function menu alone does not prove a complete validated repair capability.
Specify the electrical build and supplied tooling
The title lists 4 kW and 380 V / 220 V alternatives. Confirm the actual motor drive, electrical phase, frequency and site connection requirements on the selected build, rather than assuming that one bench accepts both supplies.

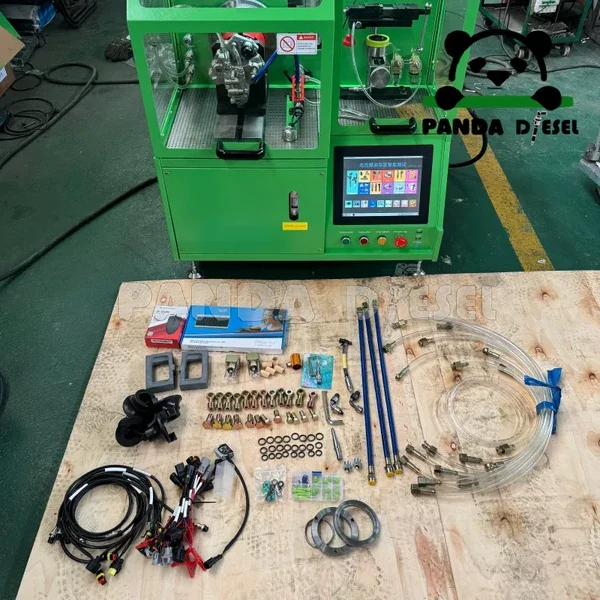

The second manufacturer photograph lays out adapters and cables beside the machine. Use it as a checklist for the quotation, then agree the exact tool inventory, replacement seals and consumables, documentation and commissioning scope for the workshop.

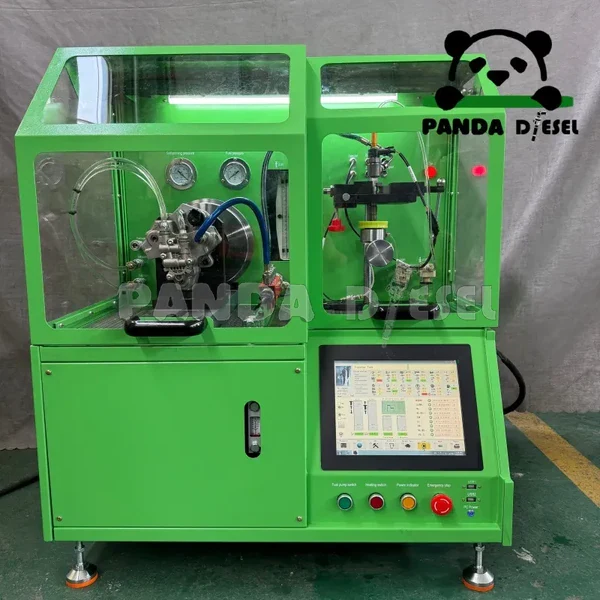

Panda Diesel CR220-page photograph of the bench and accessory layout. It is not proof that every illustrated item is included.
Planning your configuration
- List injector and pump part numbers, expected repair workflow and required test outputs. Request a supported-parts schedule and a demonstrated measurement procedure.
- Confirm electrical build, calibration, software/module scope and the exact accessory list. Source-listed manufacturer functions are references, not independent GLOBSEEK validation or stock claims.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
