Choose the configuration from flow and total head
This model reference follows the FSM2.75 50 Hz, single-phase 220 V row. The rated 44.0 US gpm at 36.1 ft is an operating point; the separately listed maximum flow and maximum head are not available simultaneously.
Calculate lift and line losses for the intended hose, fittings and discharge position. Ask for the approved 50 Hz curve and confirm the resulting duty, rather than selecting a pump from its maximum-flow number alone.

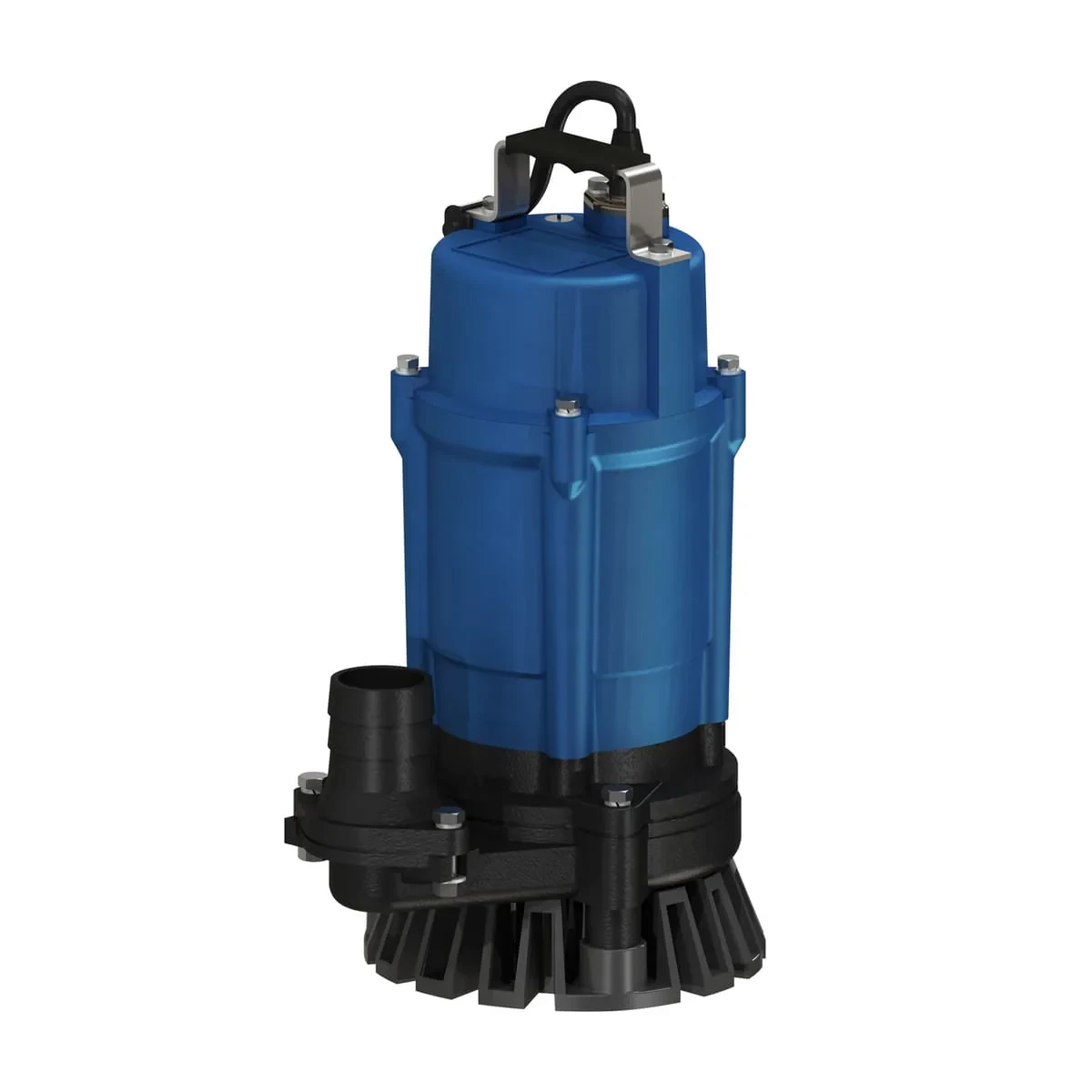

MEUDY product illustration shared by FSM2.75 / FS2.75. The parameters here specify FSM2.75 at 50 Hz and 220 V single-phase.
Describe the water and control arrangement
The FSM family uses a semi-vortex impeller and shaft-mounted agitator. Its published 6 mm passage and stated liquid limits guide a selection review, without establishing suitability for fibrous waste, concentrated abrasive slurry or aggressive chemicals.
Provide solids size, concentration and abrasive content, plus temperature and pH. Confirm the desired starting method, level control and immersion conditions, and distinguish the standard model from a separately specified F-suffix float version.
Use the exact outline when planning the pit

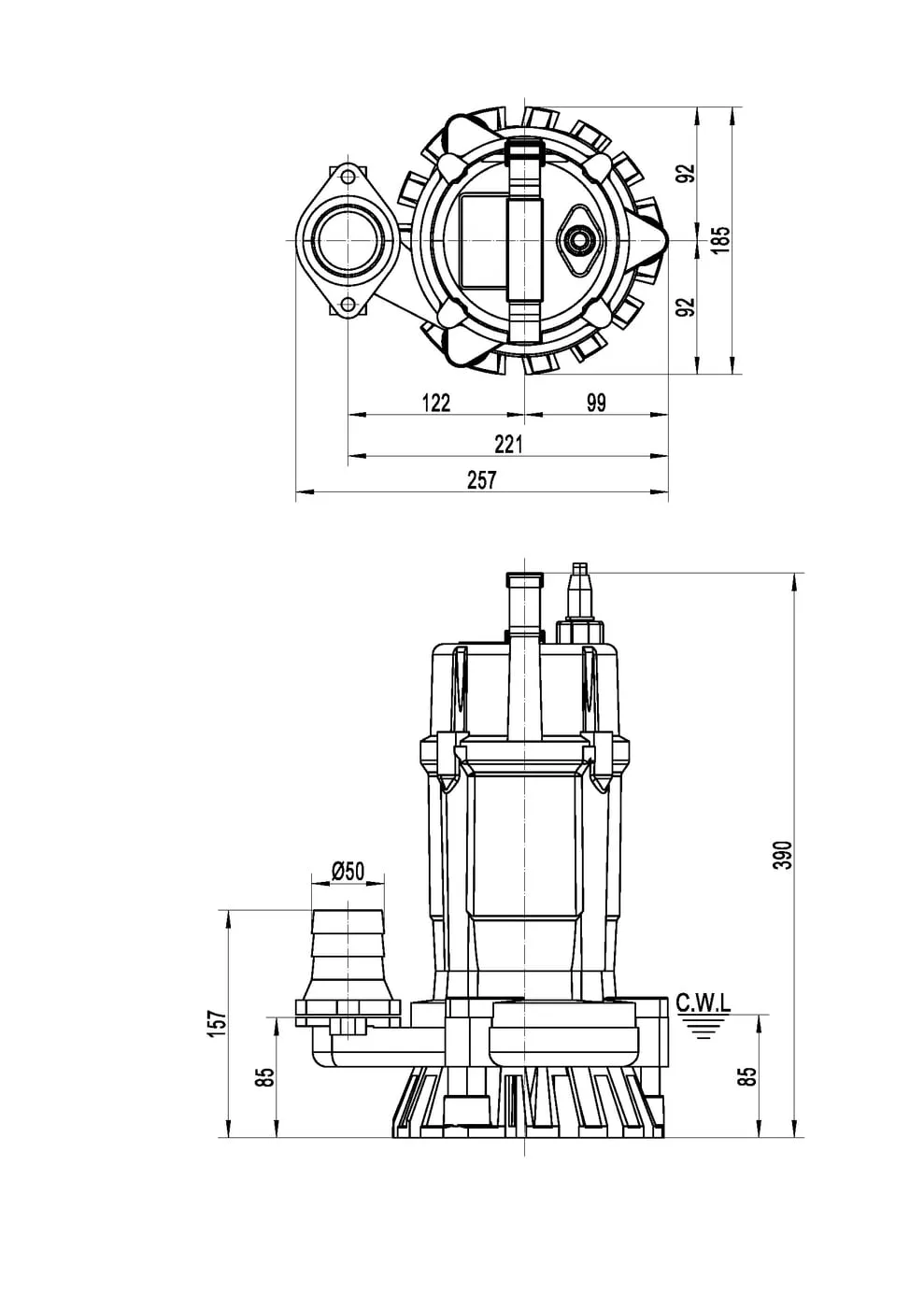

The drawing is linked directly from the FSM2.75 50 Hz table row. It shows the 50 mm discharge and installation envelope, giving a better basis for pit and hose planning than an image shared between electrical variants.
Confirm lifting access, cable protection, hose support and a current approved connection drawing. Include the correct protection and controls, spare seals and wear parts for the selected supply; the 60 Hz / 115 V alternative should not be substituted without a new duty check.
MEUDY outline drawing linked from the exact FSM2.75 50 Hz / 220 V row.
Planning your configuration
- Specify flow, total head, site voltage/frequency, water properties and installation/control requirements. Obtain the approved curve for the selected build.
- Maximum flow and head are separate curve endpoints. Confirm controls, certification and service scope; no local inventory or GLOBSEEK inspection is established by the manufacturer illustration.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
