Match speed to the actual code
LT880HRS is the high-speed option in the manufacturer's LT800-family comparison. Its 430 m/min figure is tied to a 5 × 5 matrix, so it should not be applied to every multiline or barcode layout. Test the required message on the actual moving product before accepting a production-line speed.

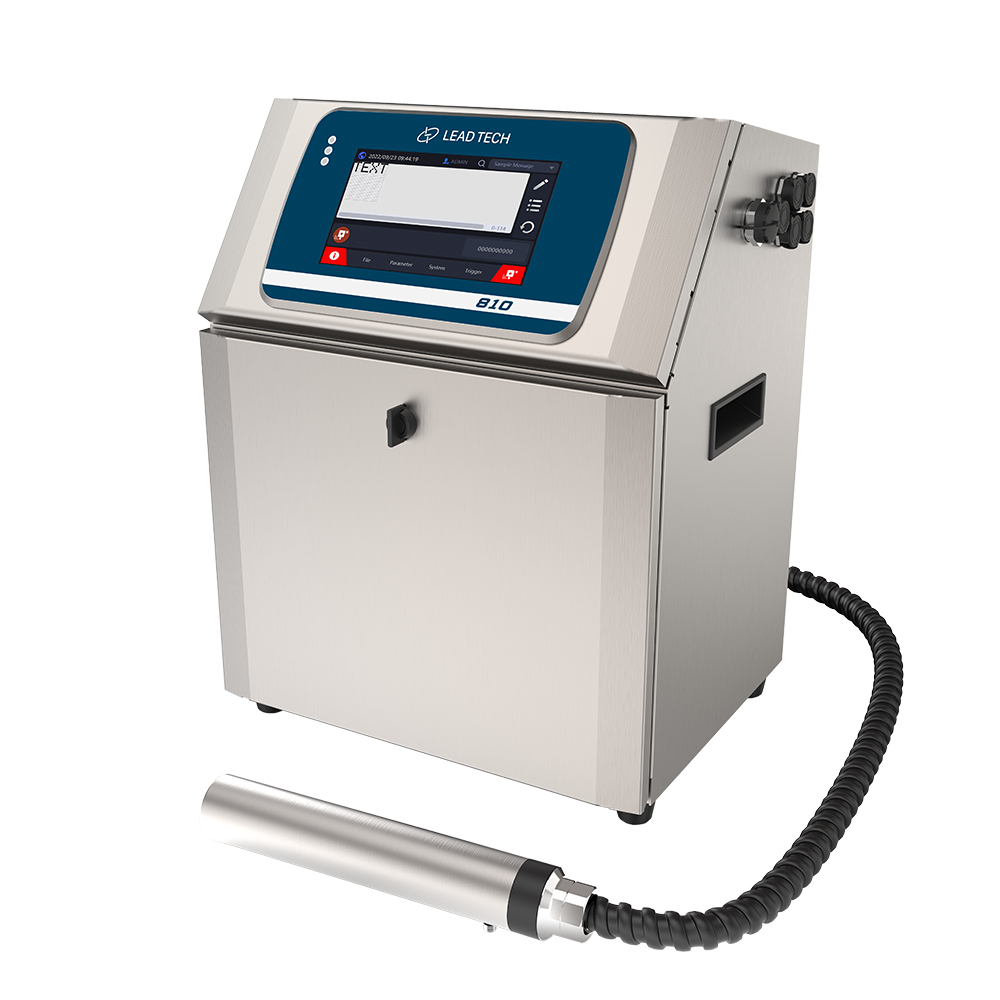

Related LT-series printer visibly marked 810 in the LT880HRS gallery; not an LT880HRS nameplate photograph.
Set the printhead and ink for the substrate
The dedicated table lists a 50 μm printhead and a recommended 10 mm printing distance within a wider stated range. Check head mounting, product movement and the selected ink against the surface. Validate code readability and adhesion after the downstream handling that the product will actually encounter.

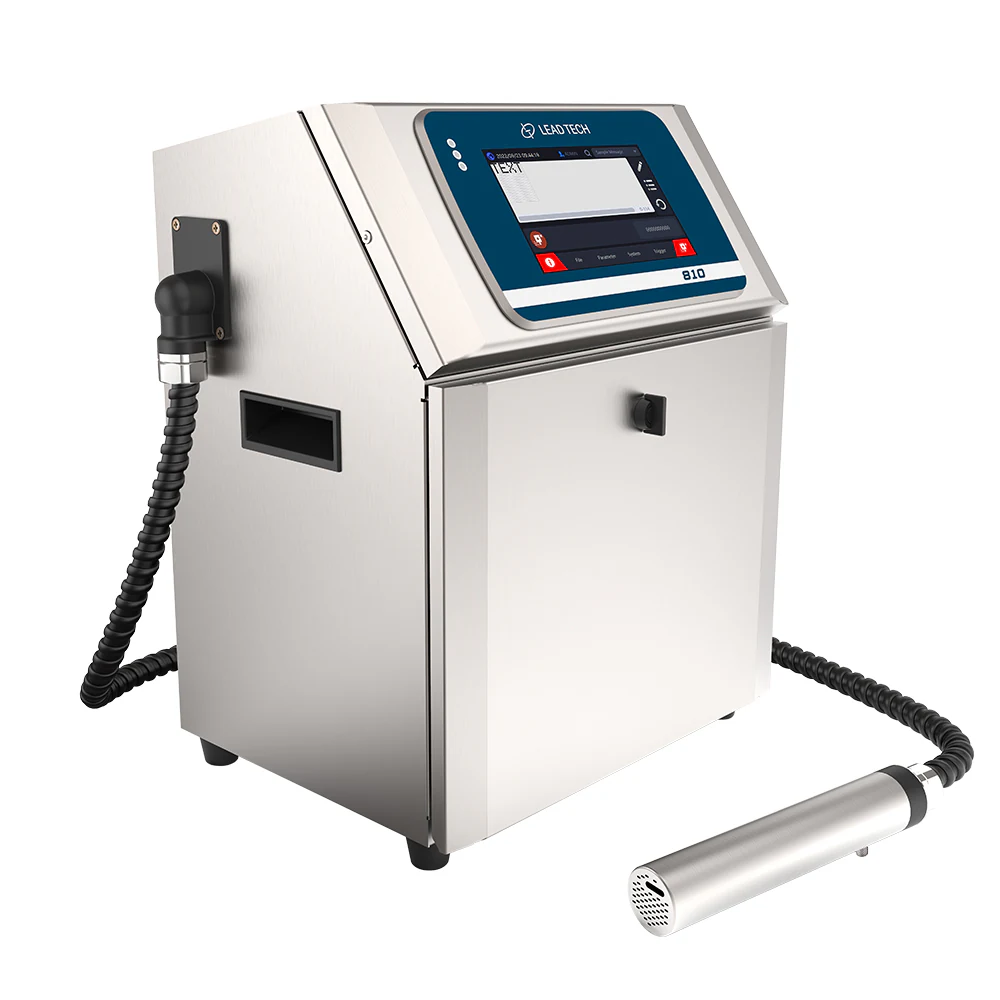

LT880HRS page gallery reference showing an 810-marked cabinet and printhead; exterior differs by model.
Confirm data connections and operating scope
The page lists USB, RS485 and Ethernet, while its feature text qualifies Ethernet by network version. Agree on the supplied interfaces and message-update method with the line controls. The product page's photographs show related LT-series models, so request the final LT880HRS configuration and identification separately.

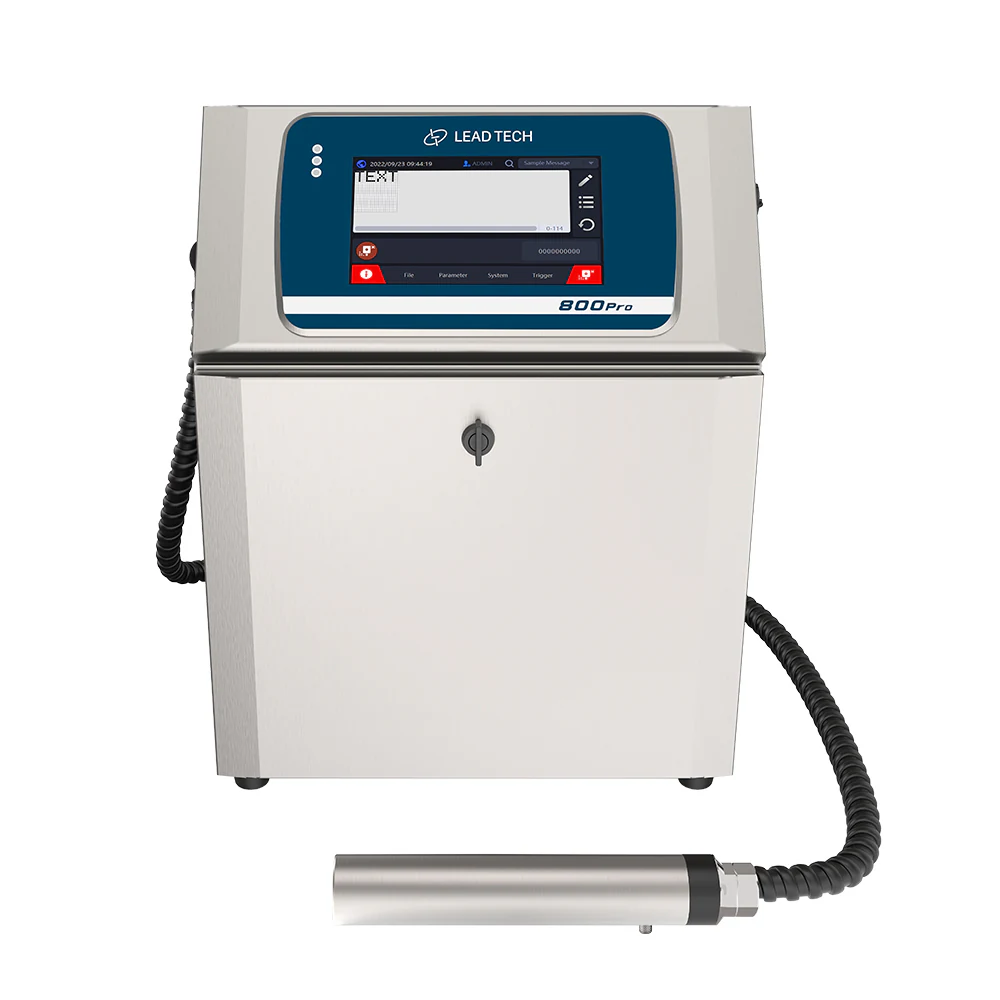

Related 800Pro-marked printer in the manufacturer's LT880HRS gallery; series reference only.
Planning your configuration
- Provide substrate samples, exact message, line speed, product pitch and required readability standard.
- Confirm ink, printhead mounting, encoder/sensor arrangement and drying conditions.
- Specify network option, interfaces and final LT880HRS identification; related gallery cabinets are not exact-model evidence.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T02:34:02.424970+00:00.
