A filter stage within the water circuit
ED-316L-300B is a mechanical drum-filter model. Establish the hydraulic head and solids load alongside the required flow before selecting a screen. Biological treatment and oxygen control remain separate design tasks within a complete recirculating system.

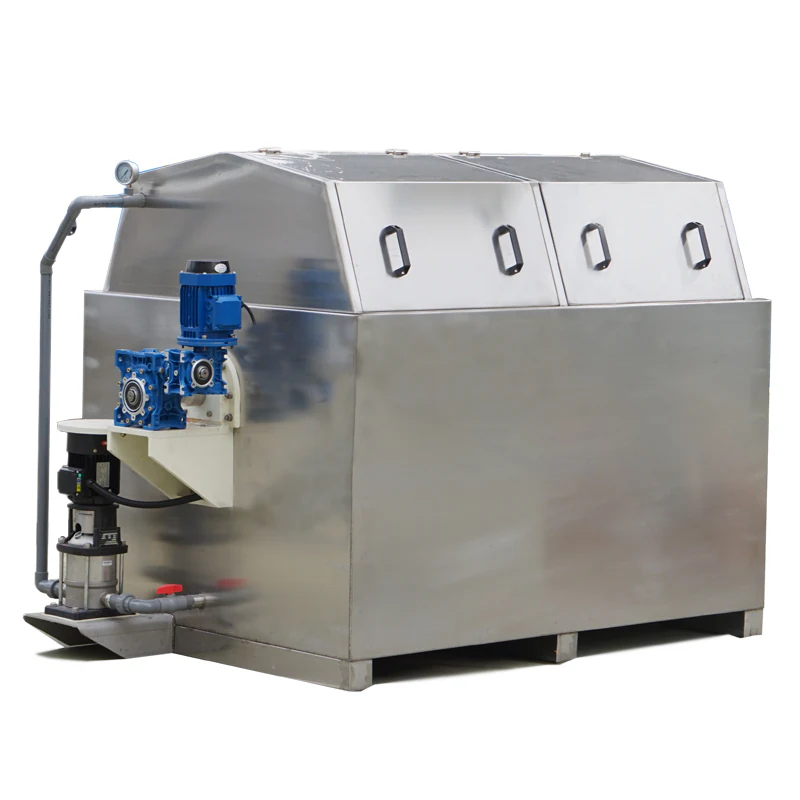

eWater ED-316L drum-filter family exterior photograph; exact pictured model unconfirmed.
Access to the screen and drum
The family photographs show removable or opening covers around the drum. Confirm the actual ED-316L-300B service arrangement and leave room for screen inspection and replacement. A gallery view does not substitute for the model's connection and access drawing.

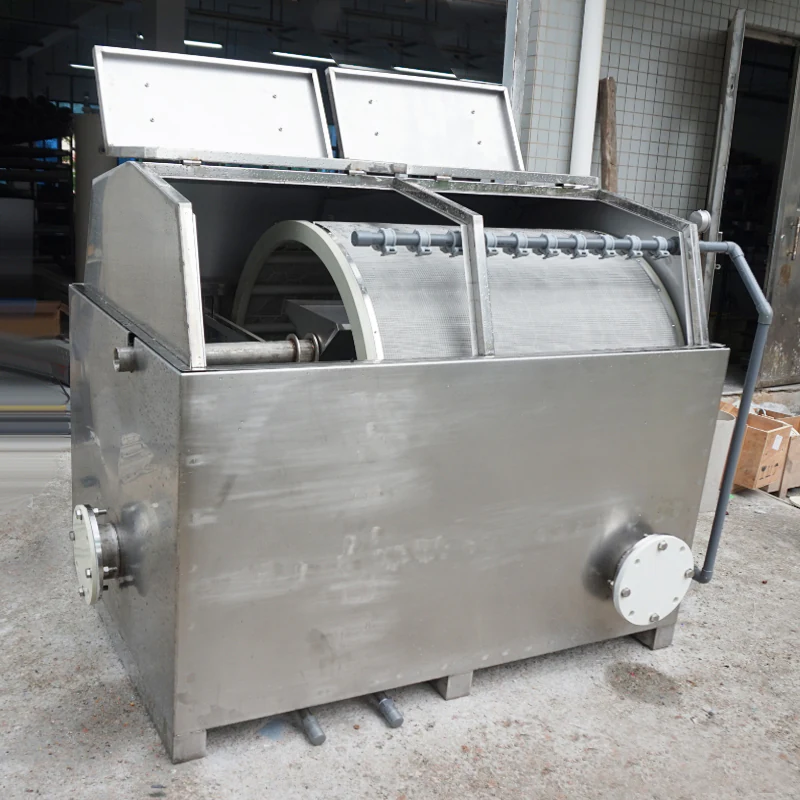

Manufacturer drum-filter photograph with covers open; ED-316L series reference.
Backwash supply and waste handling
The listed pressure and separate motor ratings describe utility requirements, not removal efficiency. Specify the backwash-water source and route the concentrated waste appropriately. Confirm controls, operating sequence and water demand for the selected screen and duty.

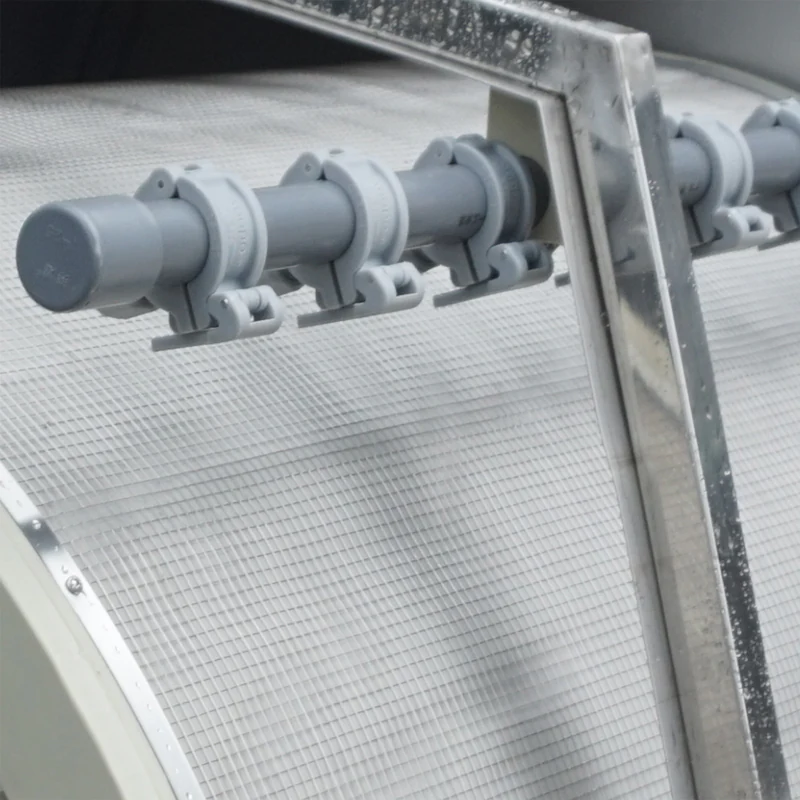

ED-316L product-page screen and spray-pipe detail; confirm configuration for ED-316L-300B.
Planning your configuration
- Specify average/peak flow, salinity, solids characteristics and available head.
- Confirm mesh size, cleaning sequence and backwash water consumption.
- Request model-specific connections, control scope and service-clearance drawings.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T02:02:27.033692+00:00.
