A wider cutting chamber
The SL2500 table specifies a 2500 mm cutting length. That width affects feed presentation and the installation envelope, but does not by itself establish output for a particular waste stream. Provide material dimensions, bulk density and contamination limits when sizing the line.

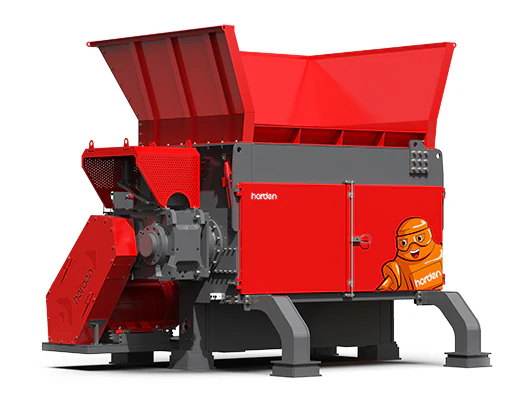

Harden gallery image explicitly named SL2500; manufacturer product rendering.
Drive and feeding arrangement
Harden describes a geared power system and an arc-shaped feeder across the SL range. Confirm the ordered spindle arrangement and the feeder's suitability for the waste. Different knife configurations should be agreed with the required output and maintenance plan.

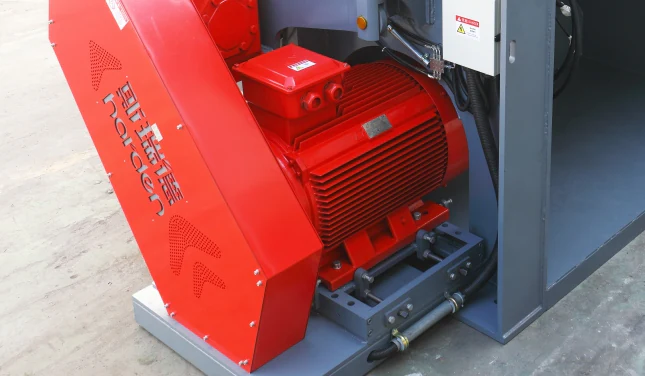

SL-series drive-system illustration; component reference, not a separate SL2500 configuration proof.

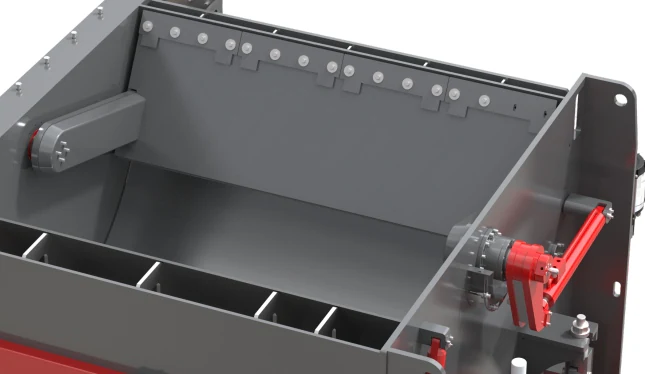

Harden SL-series arc-feeder illustration; series reference.
Screening and downstream handling
The SL2500 parameter block lists five screens. Request the actual opening and discharge arrangement rather than assuming the family overview's particle-size range applies unchanged. Coordinate discharge collection, dust control and downstream transfer with the selected material trial.
Planning your configuration
- Agree on representative feedstock trials and acceptable contaminants.
- Confirm knife arrangement, screen opening, wear parts and maintenance access.
- Request foundation loads, complete electrical demand and system interface drawings.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T01:52:25.724786+00:00.
