Use the WDP200M4 column for the larger manual size
The manufacturer places 160M4 and 200M4 on one page but gives them different diameter scopes and heater powers. This record follows the 200M4 column, not a renamed copy of the smaller model’s ratings.
List pipe diameters, SDR or wall thickness and fitting access requirements. Confirm the required reducers and clamping arrangement for the intended work, since the shared family image does not prove that every listed diameter insert is packed with the machine.

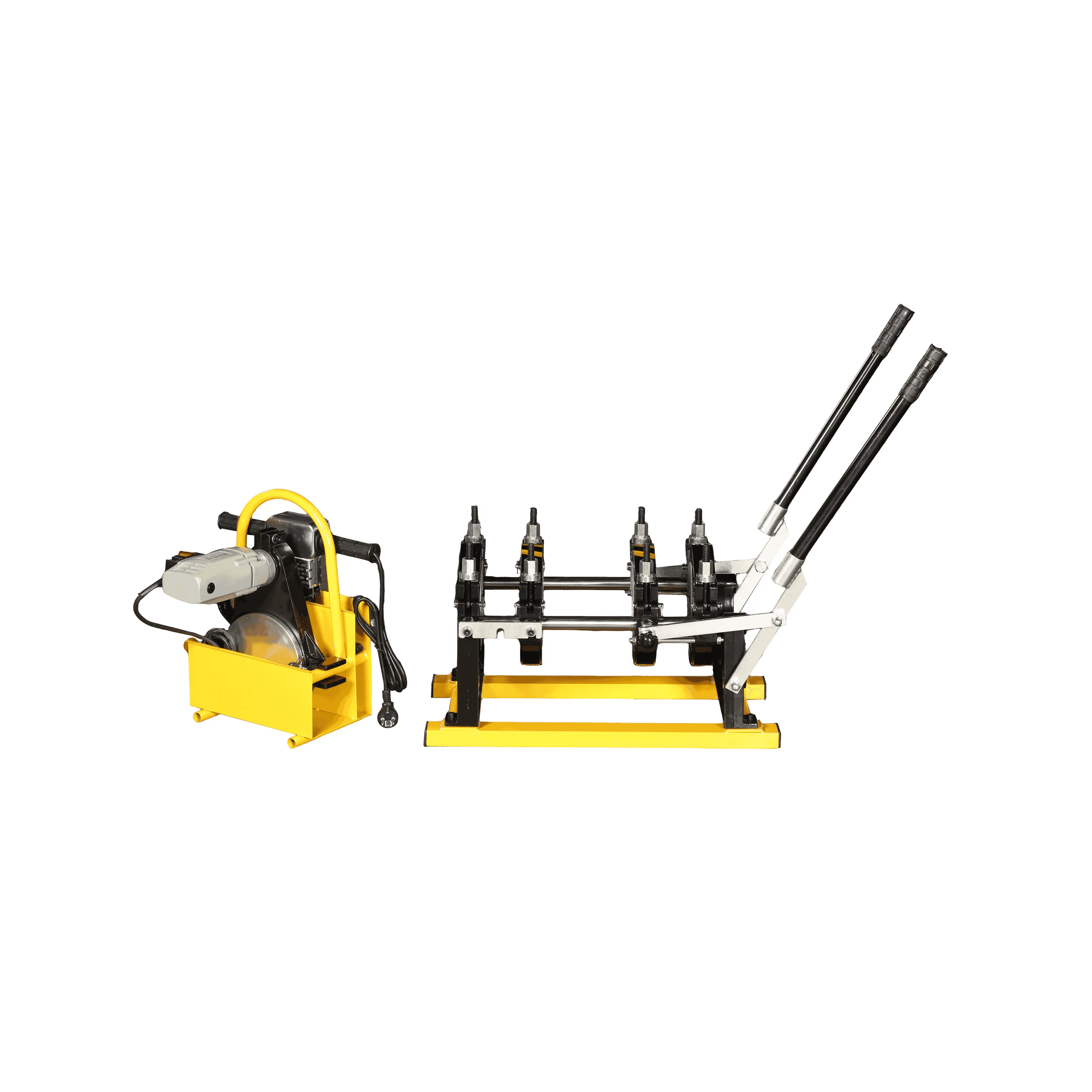

Manufacturer WDP160M4 / WDP200M4 family photo. Exact pictured size and insert contents are not confirmed.
Define the manual joining cycle from the pipe procedure
Manual carriage actuation requires an agreed method for bringing faced pipe ends together and maintaining the joining load. Request the operating procedure and the manufacturer’s load-control instructions for the specified pipe.
Use the applicable material procedure for plate temperature, heating, changeover and cooling. The controller’s 0–270°C range is a machine capability, not a recommended fusion temperature or proof that a finished joint meets a project requirement.
Complete the site power and tool schedule
The WDP200M4 total is 2.31 kW, comprising the 1.6 kW plate and 0.71 kW facer. Confirm actual plugs, cable and power protection, including generator requirements if the machine will work away from a fixed supply.
Specify the heating plate, stand, facer, inserts, replacement blades and carrying equipment. Request a model-specific packing list and the checks needed to verify alignment, plate condition and temperature before joining work.

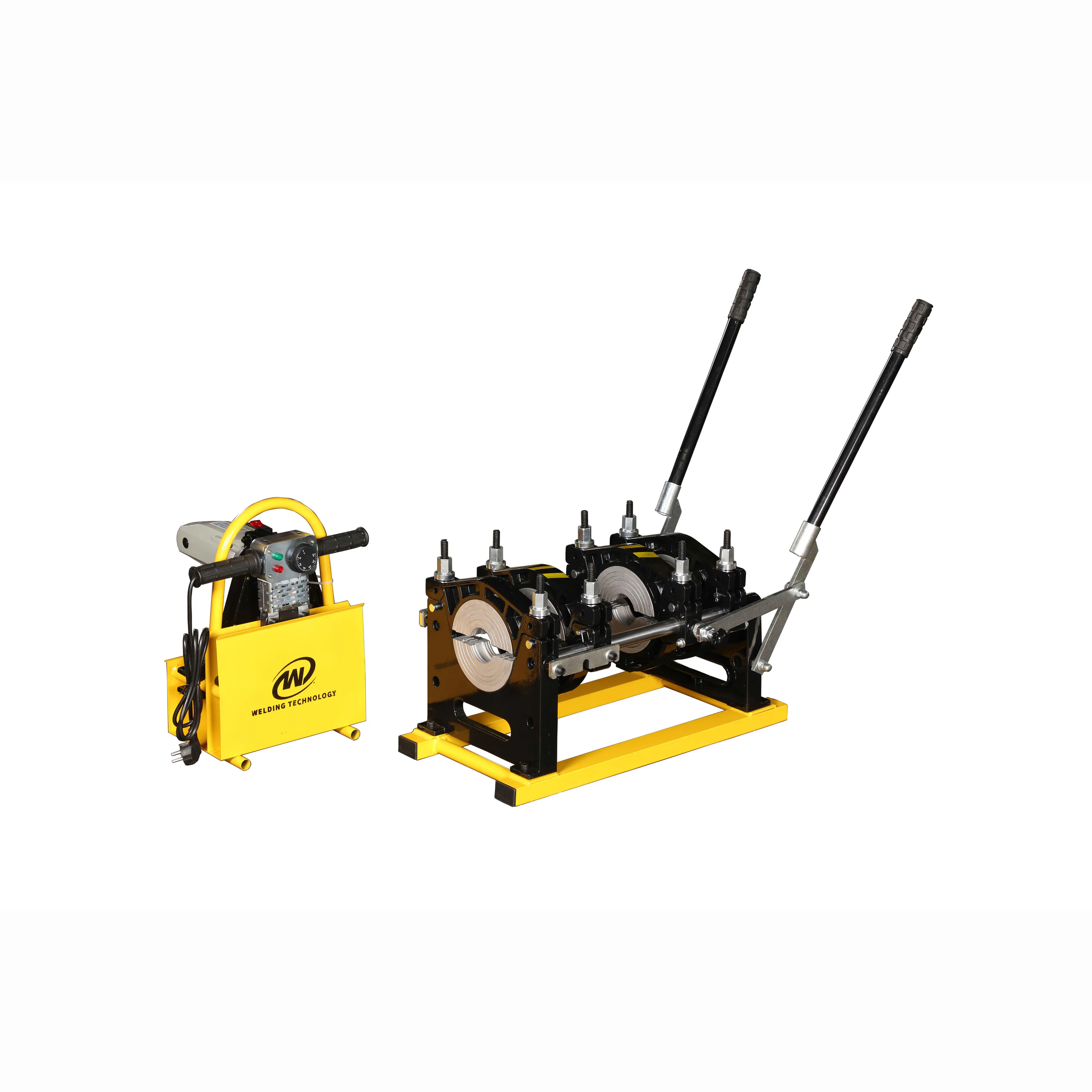

Second manufacturer WDP manual-family view. Quote the WDP200M4 size, heater and reducer set explicitly.
Planning your configuration
- State material, diameters, SDR/wall thickness and applicable joint procedure. Confirm reducer sizes and the practical manual force-control method.
- Family photographs do not establish exact size, stock or supplied contents. No completed-joint inspection or GLOBSEEK manufacturer authorisation is implied.
