Choose the working circle for the slab layout
The PME-S80 uses a 760 mm trowel diameter. Its purpose is to work fresh concrete during the finishing window, with a size that should be considered against columns, doorways, edge access and the available operating area.
Compare the diameter with the actual slab layout and daily work pattern. A smaller circle can suit restricted work areas, while a large unobstructed slab may call for a different coverage strategy; the model name alone does not define labour productivity.

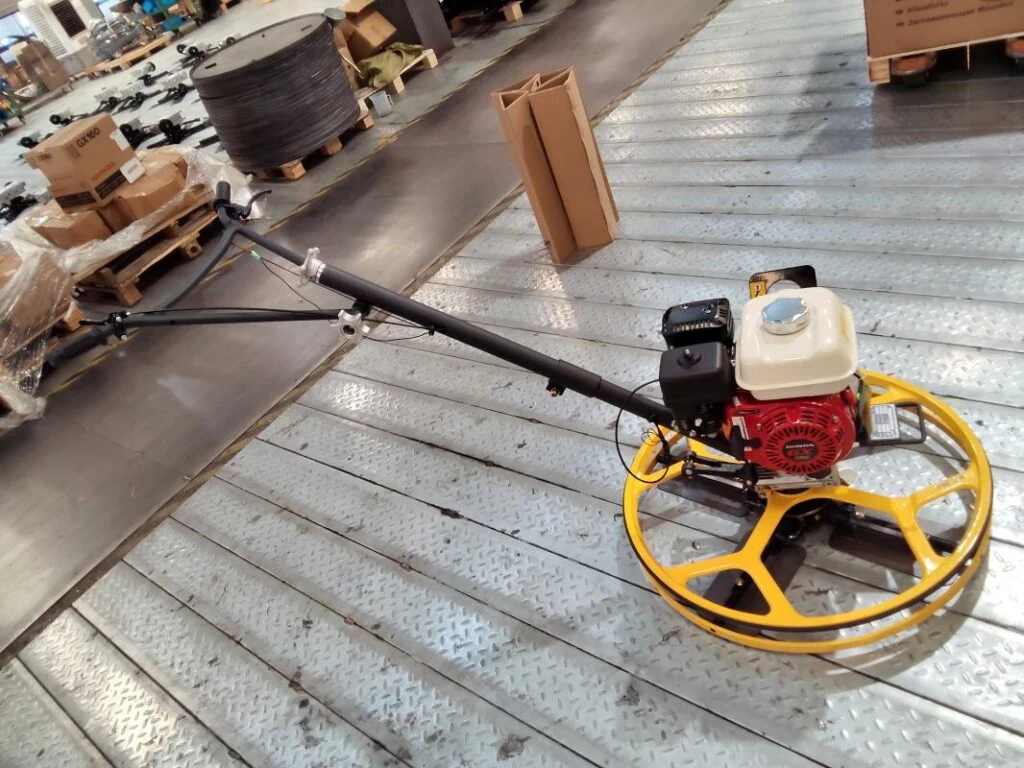

DIMEC PME-S80 manufacturer photograph in the source workshop. This is not a GLOBSEEK facility or stock inspection.
Match blades, pan and engine to the finishing work
DIMEC lists a 60–100 r/min range and 0–15° blade pitch. Specify the blade or float-pan arrangement needed for the slab stage and finish, and confirm the included-tool list and operating procedure.
The engine list contains alternatives. Choose the exact engine build with local parts and servicing in mind, then request the compatible belts, filters and routine service items rather than treating the engine shown in one photograph as the only available configuration.
Plan transport, setup and wear-parts supply
The source gives 66/76 kg net/gross mass and an 82 × 82 × 75 cm package. Confirm the final packed handle and accessory arrangement, loading method and shipment dimensions for the selected engine.

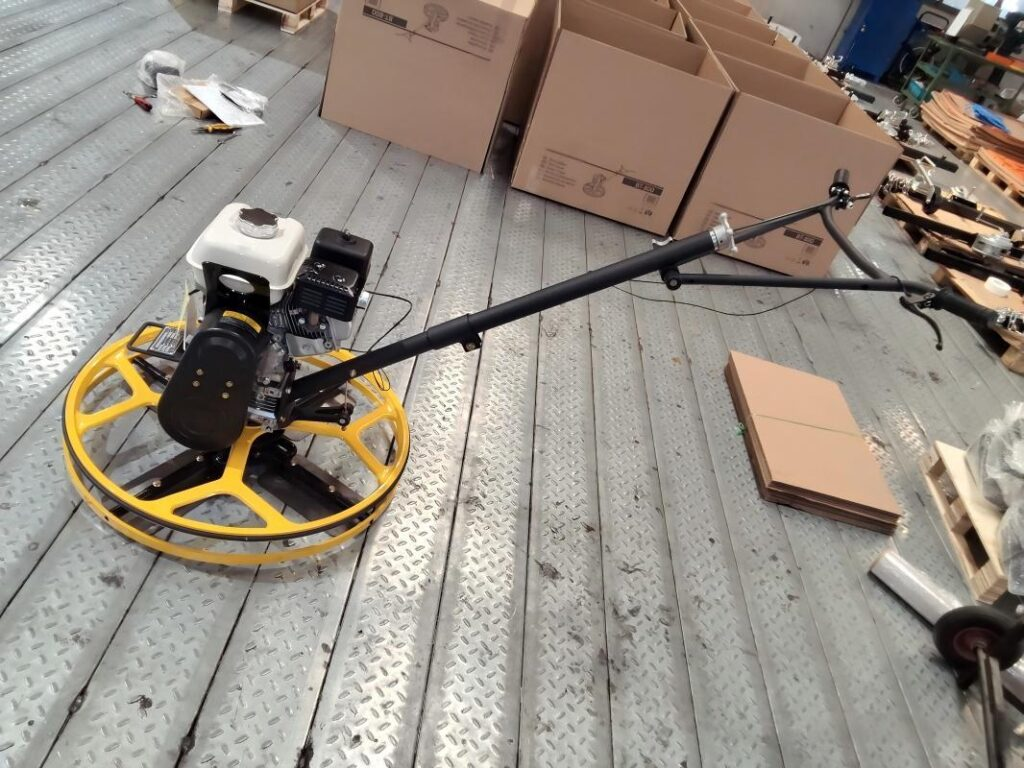

The second photograph helps identify the handle, drive cover and guard layout. Request replacement blades and other wear parts by the final machine’s part numbers, together with setup instructions and the checks needed before the first concrete finishing job.
Second DIMEC PME-S80 manufacturer photograph. Agree the supplied engine and tool configuration in the order.
Planning your configuration
- State slab access, finishing stage, required finish and engine preference. Confirm pan/blade inclusion and the final handle arrangement.
- The range values describe the machine, not a guaranteed slab output. Manufacturer workshop photographs do not establish GLOBSEEK stock, factory ownership or completed projects.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
