Check the larger working circle against the slab
The PME-S120 uses a published 1170 mm trowel diameter, the larger walk-behind size in this DIMEC range. The increase in working circle affects clearance and operator movement around columns, edges and narrow access.
Provide slab dimensions and the intended finishing sequence. Confirm where this size can work and what separate edge or restricted-area method is needed, rather than inferring a guaranteed area per hour from diameter alone.

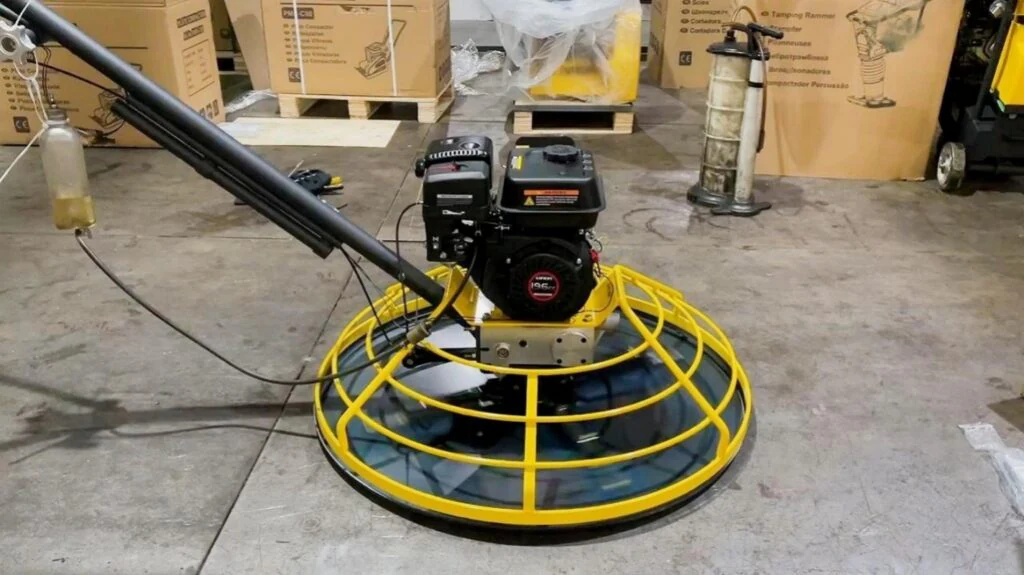

DIMEC PME-S120 manufacturer product photograph with guard ring and pan reference. Confirm the exact supplied finishing tools.
Select the finishing tools and engine as one build
The source lists 60–100 r/min and 0–15° pitch. Specify the required blades or float pan for the material stage and desired finish, including the adjustment and operating instructions.
The engine entries are manufacturer-published alternatives, not a declaration that all combinations are supplied identically. Agree the actual engine model approved for the selected tool configuration and its local service parts, using the quotation and nameplate as the final build reference.
Plan handling and the replacement-parts package
The model table gives 96/110 kg net/gross mass and a 125 × 125 × 85 cm package. Confirm the final packed handle, pan and accessory arrangement and the handling method for shipment and jobsite use.

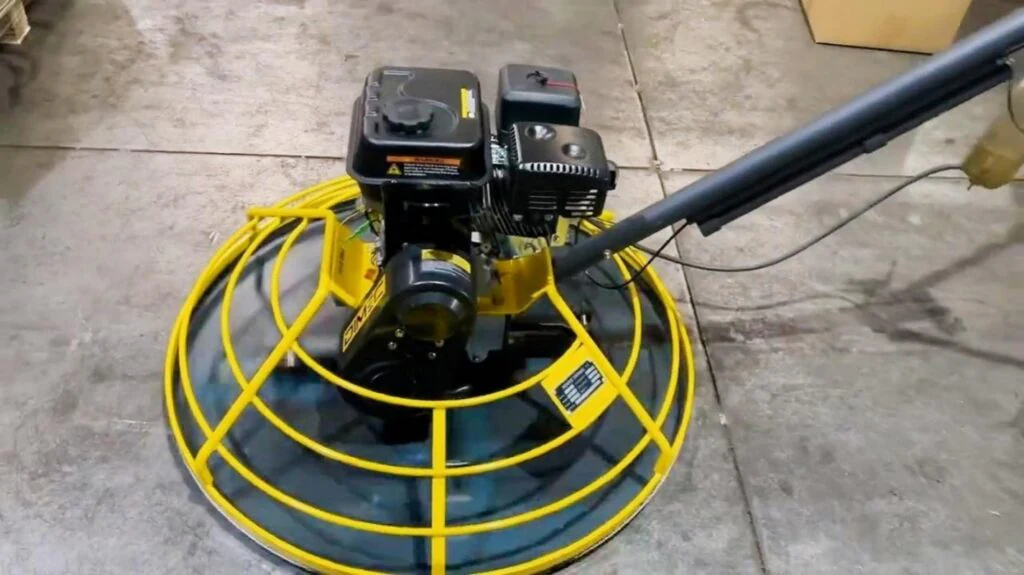

Use the second manufacturer photograph to discuss drive access, controls and tool changes. Include model-matched belts, blades and engine-service items in the parts schedule, with the instructions and checks required before concrete work.
Second manufacturer view of PME-S120. Engine and finishing-tool inclusion require order confirmation.
Planning your configuration
- State slab access, finishing stage, desired result and engine/service requirements. Confirm the approved pan/blade and engine combination.
- Machine ranges and factory photographs do not establish slab productivity, GLOBSEEK inventory or a completed floor-finishing project.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
