Plan ride-on finishing around the slab and access
The PME-RS80 puts the operator above the working assemblies and uses eight finishing blades. Its ride-on layout changes the required access and handling arrangement compared with the smaller walk-behind models in the same catalogue.
Describe slab dimensions, obstructions, openings and the intended finishing sequence. Confirm when the slab is ready for the selected machine and how edges and restricted areas will be finished, instead of assuming that the whole floor can be covered by one machine type.

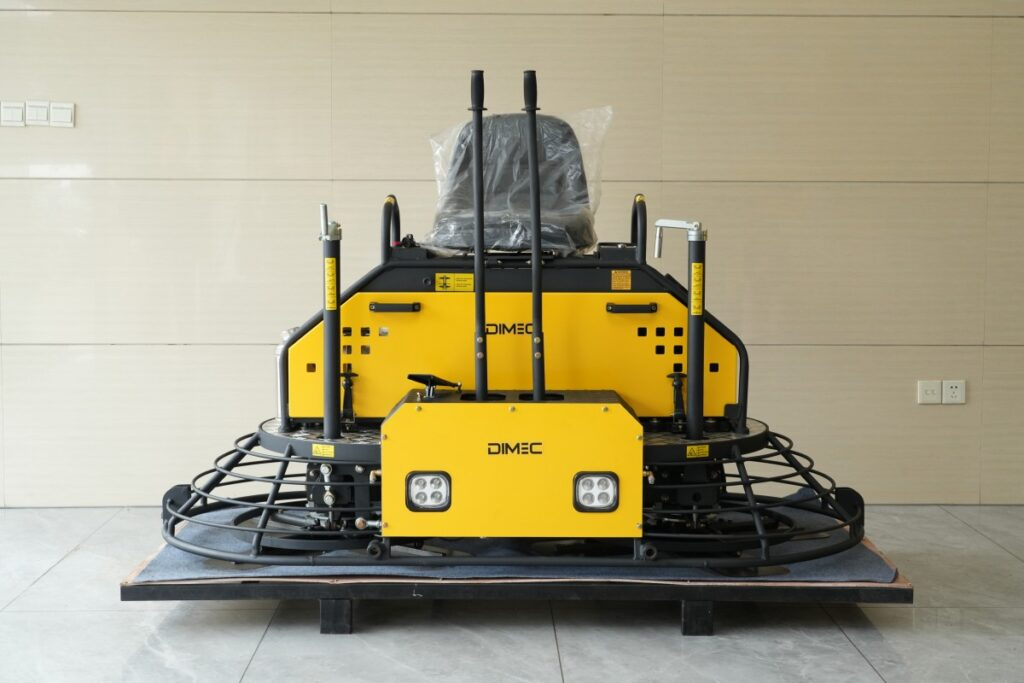

DIMEC PME-RS80 manufacturer product photograph. Confirm the supplied pans, blades and controls for the selected build.
Select finishing tools and the engine package
DIMEC’s table names Honda GX390/13 hp with electric starting, 280 × 145 mm blades and a 70–140 r/min blade range. Specify the engine build and the pans or blades needed for the proposed finishing stages.
Ask for the included-tool schedule, blade adjustment and operating instructions. Plan consumable and routine engine-service items around the actual delivered configuration rather than assuming that every pictured fitting is standard.
Approve transport and service clearance from the final drawing
The published working and packing dimensions are 168 × 86 × 104 cm and 174 × 90 × 116 cm respectively. Obtain the current lifting, loading and installed-clearance drawing before arranging transport or site access.
Request confirmed machine weights with and without the chosen pans, together with battery and fuel shipment requirements where applicable. The rear photograph supports discussion of service access, while a model-matched parts list should define belts, blades and routine replacement items.

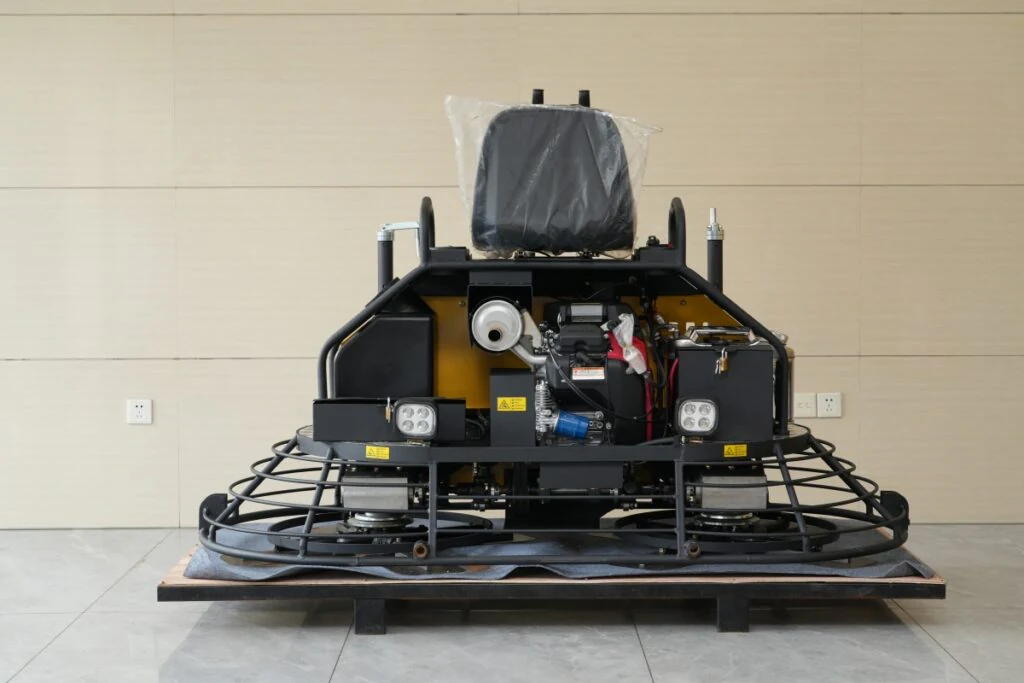

Rear PME-RS80 manufacturer view showing engine and service layout. The photograph is a reference configuration.
Planning your configuration
- State slab layout and finishing requirements, site access, engine preference and pan/blade needs. Confirm the actual working envelope and handling method.
- Request an unambiguous final weight and supplied configuration. No productivity, stock, certification or GLOBSEEK concrete-project result is inferred from the manufacturer photos.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
