Check the track geometry before selecting press capacity
PTP 100 is the 100-ton entry in the manufacturer’s track-link press table. Its C-frame dimensions are as important as the force rating because the frame, ram and adapters must align with the intended track pin.
Provide the machine and track-chain details, pin and bush dimensions and available access. Request a tooling proposal and drawing showing the reaction faces, pin travel and frame clearance for that track assembly.

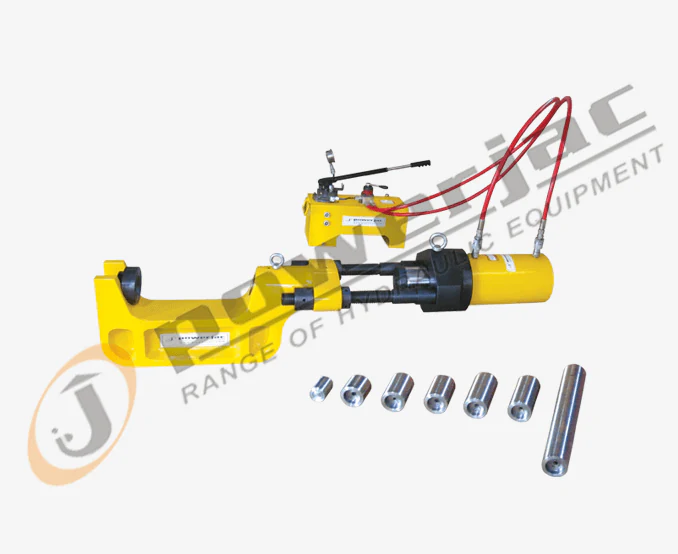

POWERJAC PTP-family manufacturer photograph with pump and adapters. The exact model pictured and supplied tooling are not confirmed as PTP 100.
Treat handling and reaction support as part of the system
The PTP 100 row gives an approximate 200 kg total weight. POWERJAC also states that lifting assistance is needed during operation, so portability here means a relocatable press system rather than a hand-carried tool.
Agree the handling method, support arrangement and alignment procedure before use. Confirm the correct push pins, receiving sleeves and end adapters, and obtain the manufacturer’s operating instructions for the particular track and tooling combination.
Define the hydraulic and acceptance package
The series is listed with a 700 bar maximum working pressure. Specify the matching pump, hoses, couplings, pressure gauge and controls as one rated system, and confirm which items are included in the quotation.

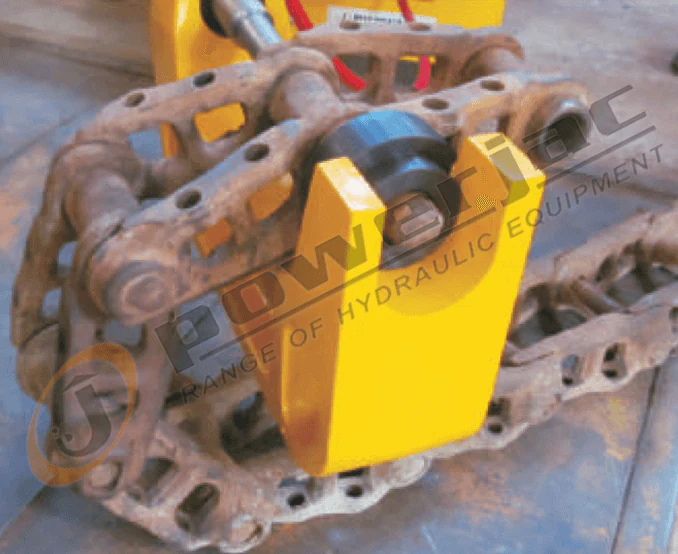

The second photograph is a manufacturer application reference showing a press positioned at a track chain. It is not a GLOBSEEK repair case or proof of compatibility with every excavator. Ask for an application-specific fit check and the inspection and maintenance schedule for the press and tooling.
POWERJAC manufacturer application photograph of the PTP family at a track chain. It is not a GLOBSEEK job or a verified PTP 100 fit for a particular machine.
Planning your configuration
- State the exact track assembly, pin/bush dimensions, access and expected removal force. Confirm frame clearance, stroke and model-specific tooling.
- POWERJAC is an Indian manufacturer reference. Confirm the capacity unit, hydraulic package, handling plan and fit for the intended track; no stock, partnership or completed GLOBSEEK repair is claimed.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
