Match the mast and load to the rack
RT16Li is identified as a 1600 kg sit-on lithium reach truck on NOBLELIFT's dedicated page. Its table also lists 9500 mm lift height. These are separate reference values, not a statement that every 1600 kg load can be lifted to the maximum height.
Provide the pallet dimensions, load centre, rack beam heights and any attachments. Obtain the residual-capacity chart for the selected mast and check access, floor condition and overhead clearances around the complete route.

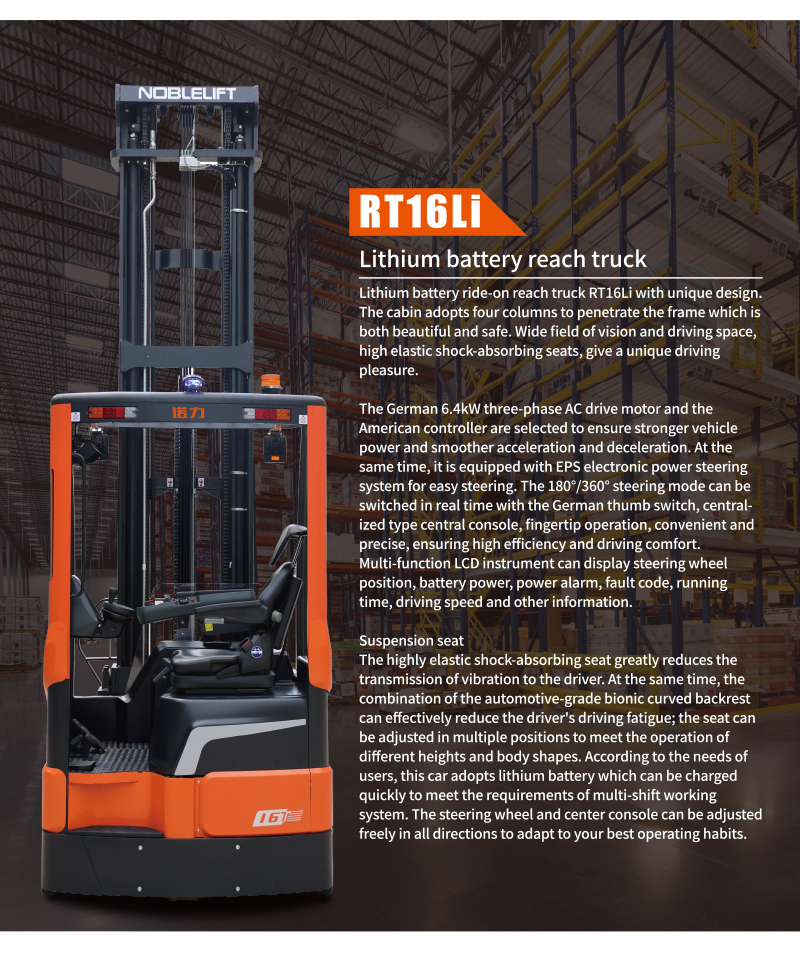

Official NOBLELIFT RT16Li product and operator-feature board. Manufacturer markings are retained; confirm the mast and supplied equipment for the order.
Check the aisle and operator position
The listed 2770 mm aisle figure applies to 1000 × 1200 mm pallets crossways. The 1650 mm turning radius and 1270 mm overall width are additional geometry inputs, not a substitute for a route check with the actual pallet and load overhang.
The manufacturer's feature boards show a sit-on position, visibility and control arrangements. Confirm the supplied seat, controls, access and operating procedures for the warehouse rather than assuming every pictured feature is included unchanged.

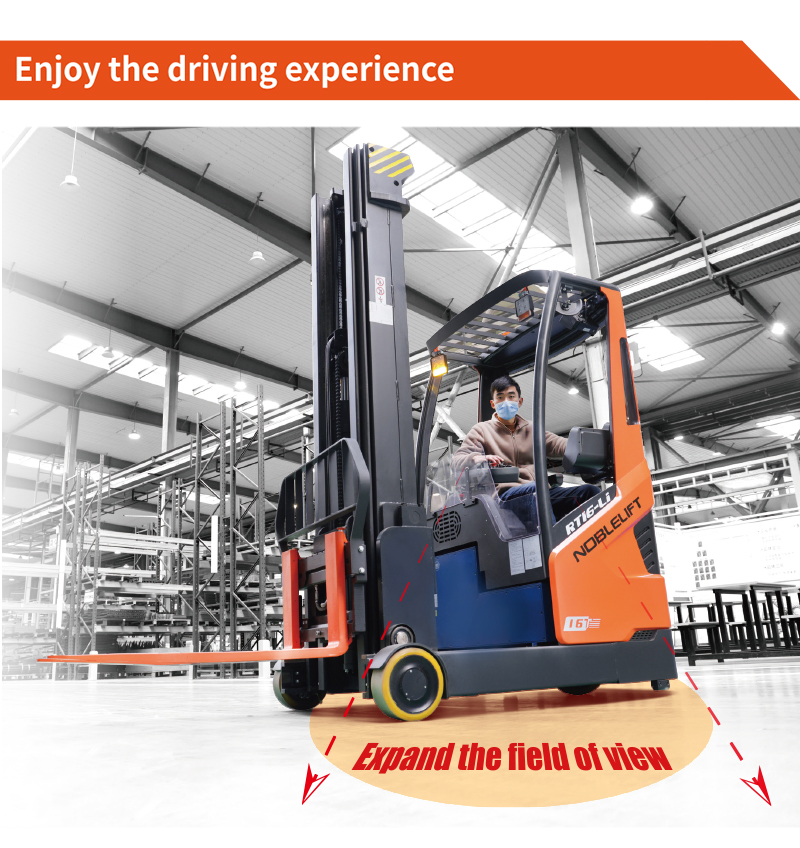

RT16Li manufacturer operator-position and visibility board. It illustrates a warehouse arrangement rather than a documented GLOBSEEK installation.
Specify the lithium power and final configuration
The dedicated table lists 48 V / 350 Ah battery capacity. Review working shifts, charging opportunities and the proposed charger against the actual duty cycle; battery capacity alone does not determine a guaranteed operating time.
Use the final configuration schedule for the mast, battery, charger and control options. Request the load chart, inspection instructions and maintenance access before accepting a reach-truck package for the rack system.

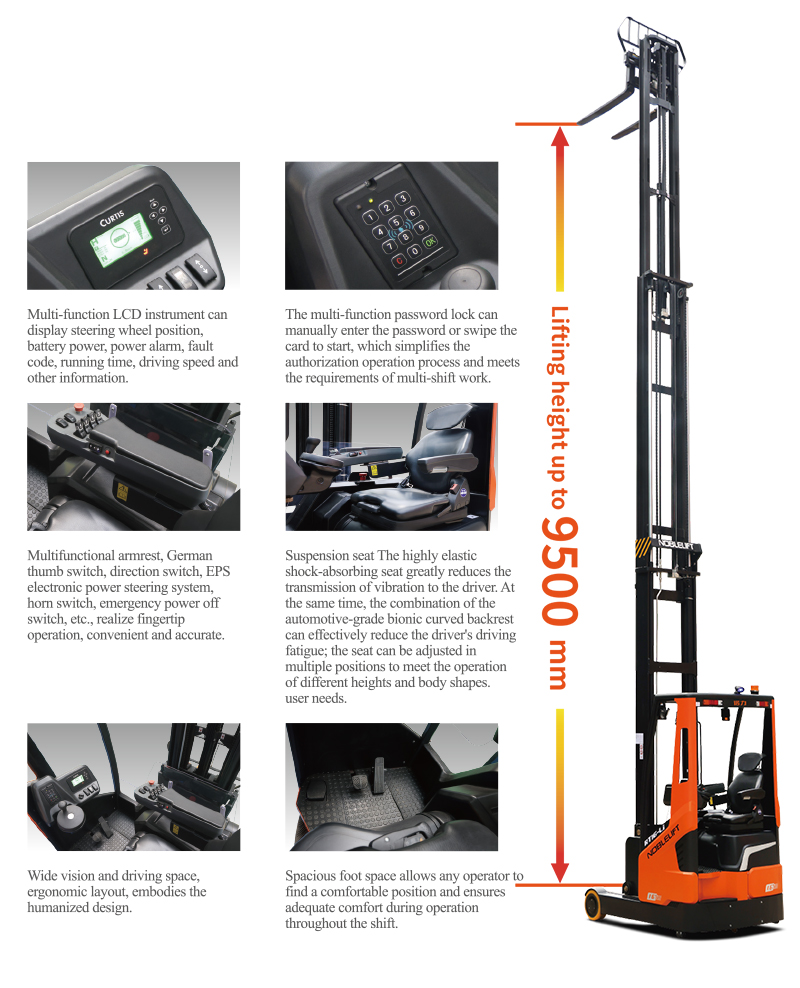

NOBLELIFT RT16Li control and mast feature board, including the manufacturer's 9500 mm lift-height reference. The diagram does not establish 1600 kg residual capacity at that height.
Planning your configuration
- Provide pallet size, load centre, rack height, aisle layout and route conditions.
- Check the selected mast capacity chart; do not combine nominal load with maximum lift height.
- Agree the battery, charger, duty cycle and supplied control configuration.
