Pallet transport with a long tiller
The manufacturer describes a long-tiller electric truck for short-distance transport and vehicle loading. Check the actual pallet and load centre together with doorway, dock and trailer clearances. The rated load alone does not establish suitability for a particular route.

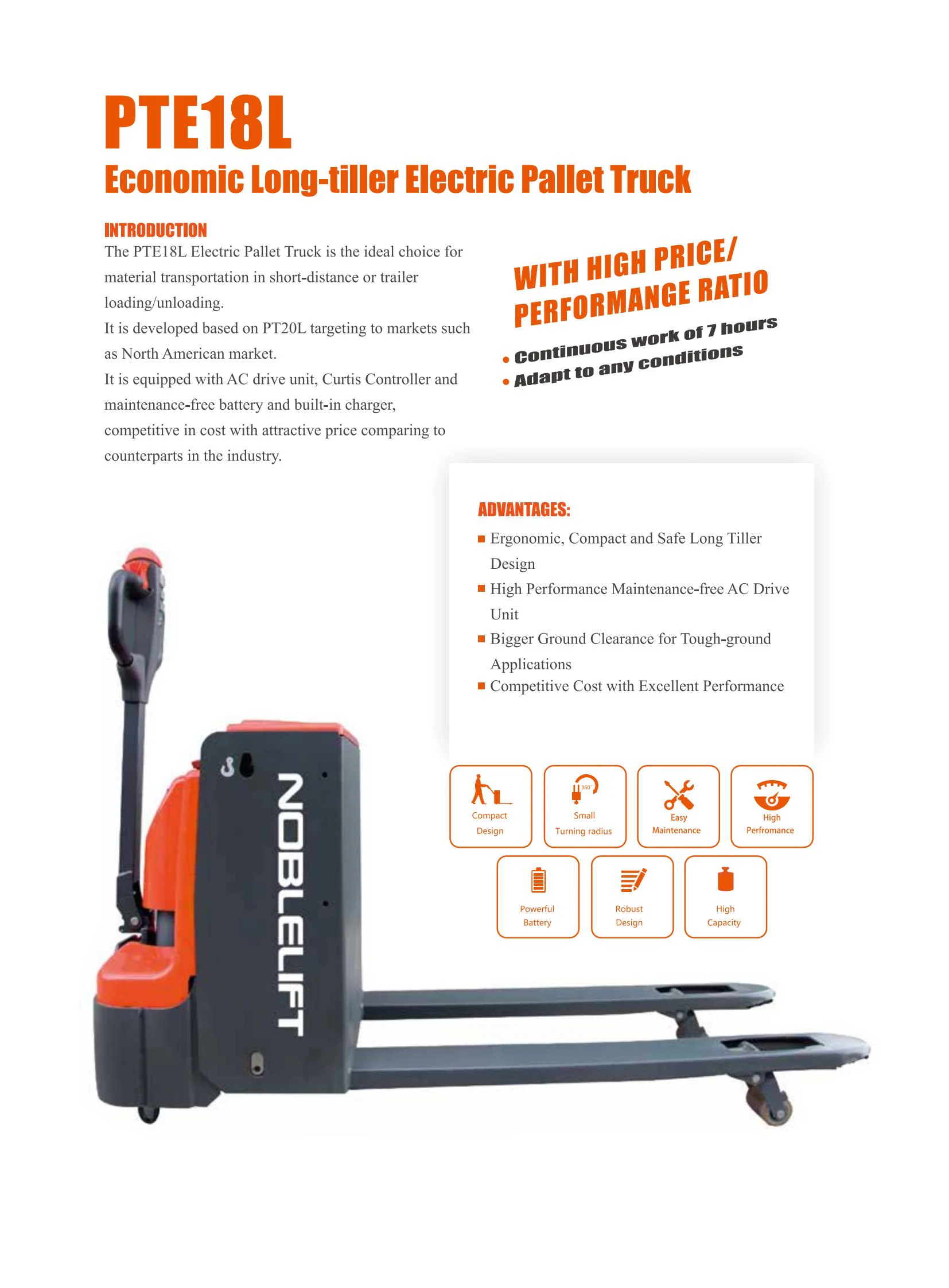

NOBLELIFT PTE18L model-labelled manufacturer feature sheet with whole-truck view.
Low-speed manoeuvring and fork entry
The illustrated sheet identifies a creep button and fork-tip entry rollers. These are useful configuration points to confirm when pallets must be approached in confined spaces. Review floor joints and pallet underside geometry as part of the handling trial.

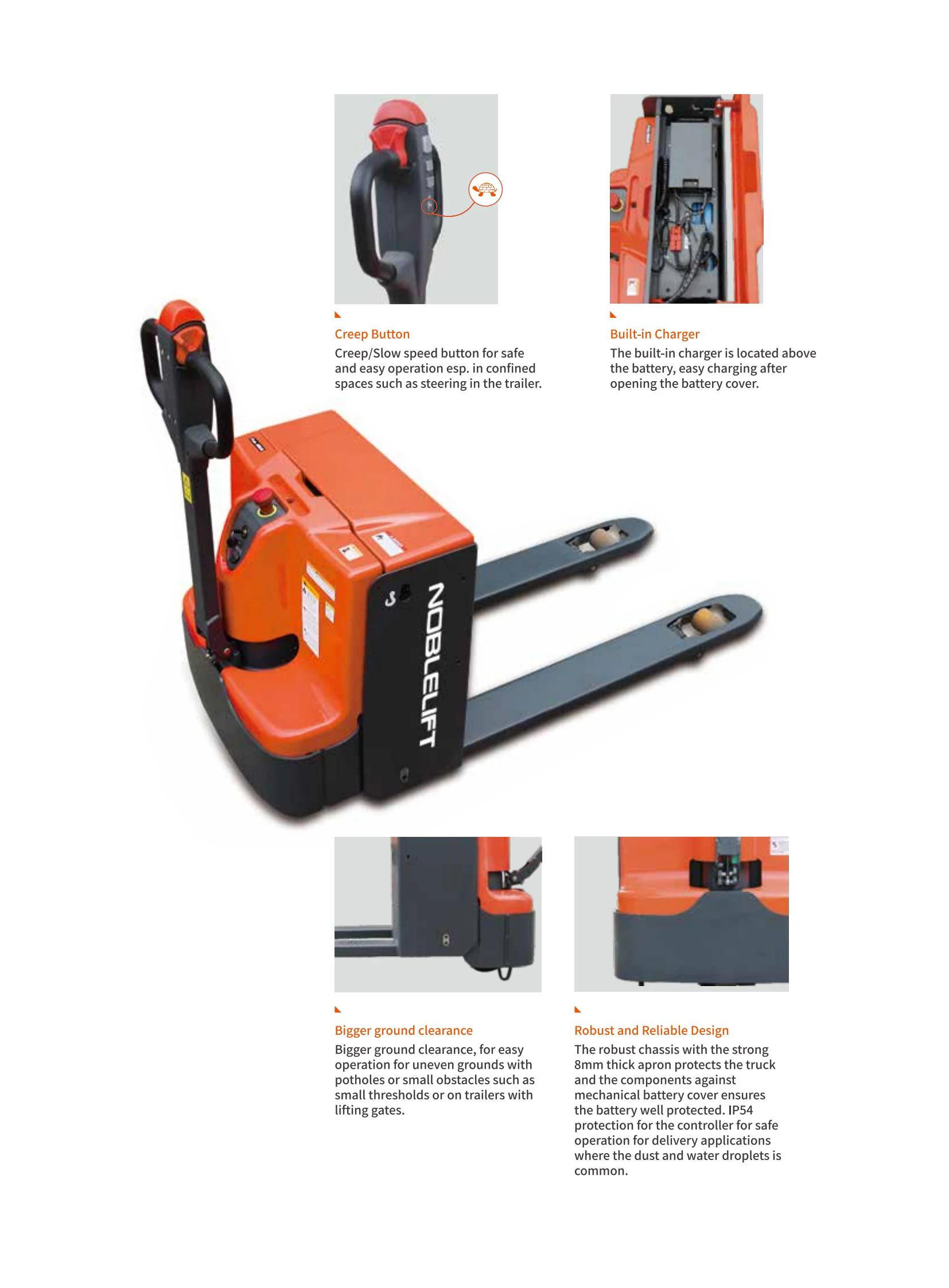

PTE18L manufacturer illustrations of tiller, charger access and chassis; retain original source text.
Battery and charging arrangements
The parameter table lists a 24 V, 160 Ah battery and the feature sheet shows a built-in charger. Select the charging supply and shift plan around the actual duty cycle. Published working-hour examples are not a guaranteed runtime for every load pattern.

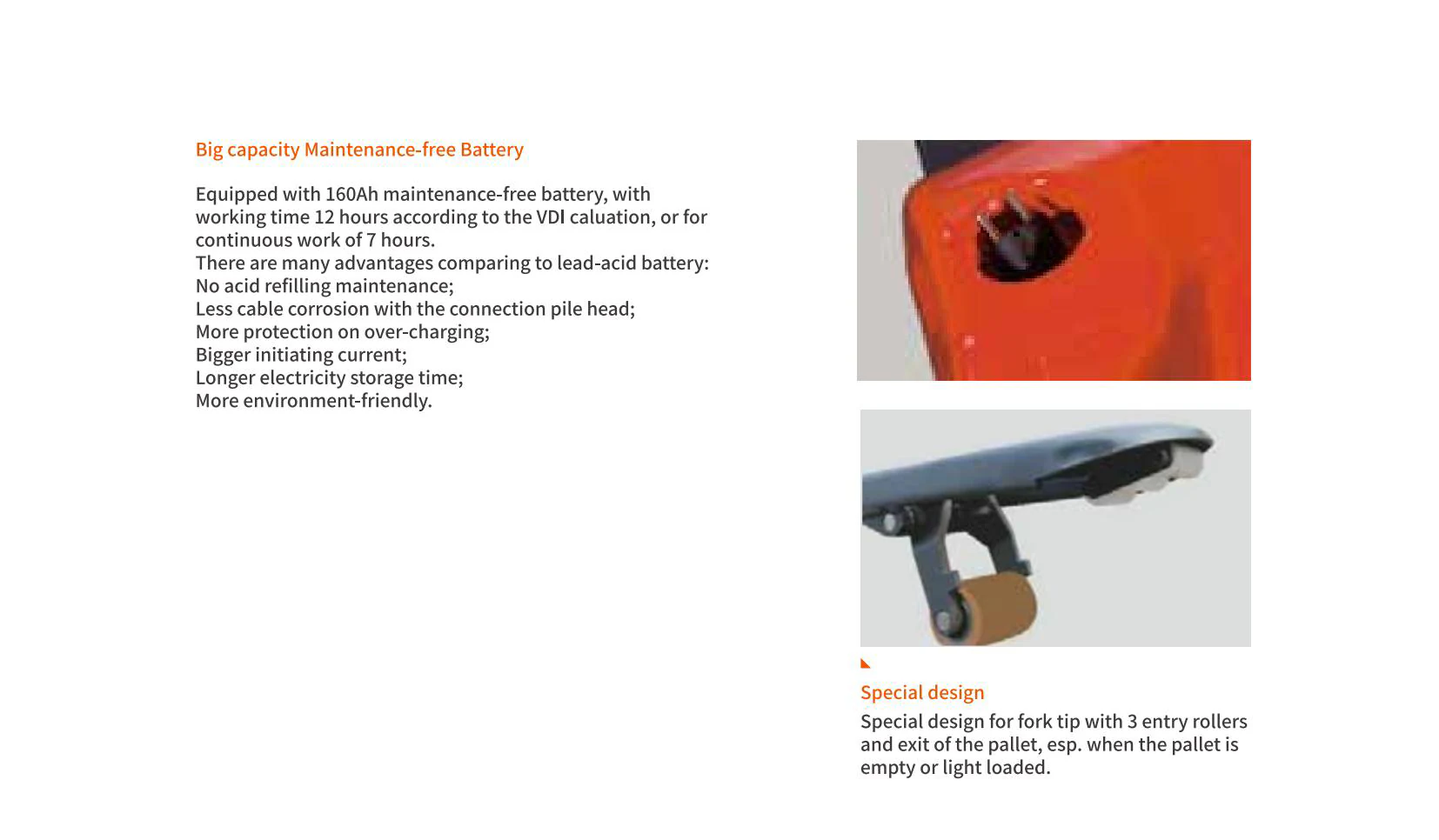

PTE18L manufacturer battery and fork-entry-roller illustration; runtime text is a manufacturer reference, not a project guarantee.
Planning your configuration
- Confirm fork dimensions, pallet compatibility and load-centre limitations.
- Provide route length, gradients, floor condition and shift profile.
- Confirm charger input, battery service procedure and destination-market version.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T01:53:14.158369+00:00.
