Size the truck for the pallet route
PT20Li combines a 2-tonne transport rating with the turning-radius figure in its model table. Check the complete pallet and load envelope through doors, intersections and loading positions. Turning radius alone does not establish the required aisle width for every pallet.

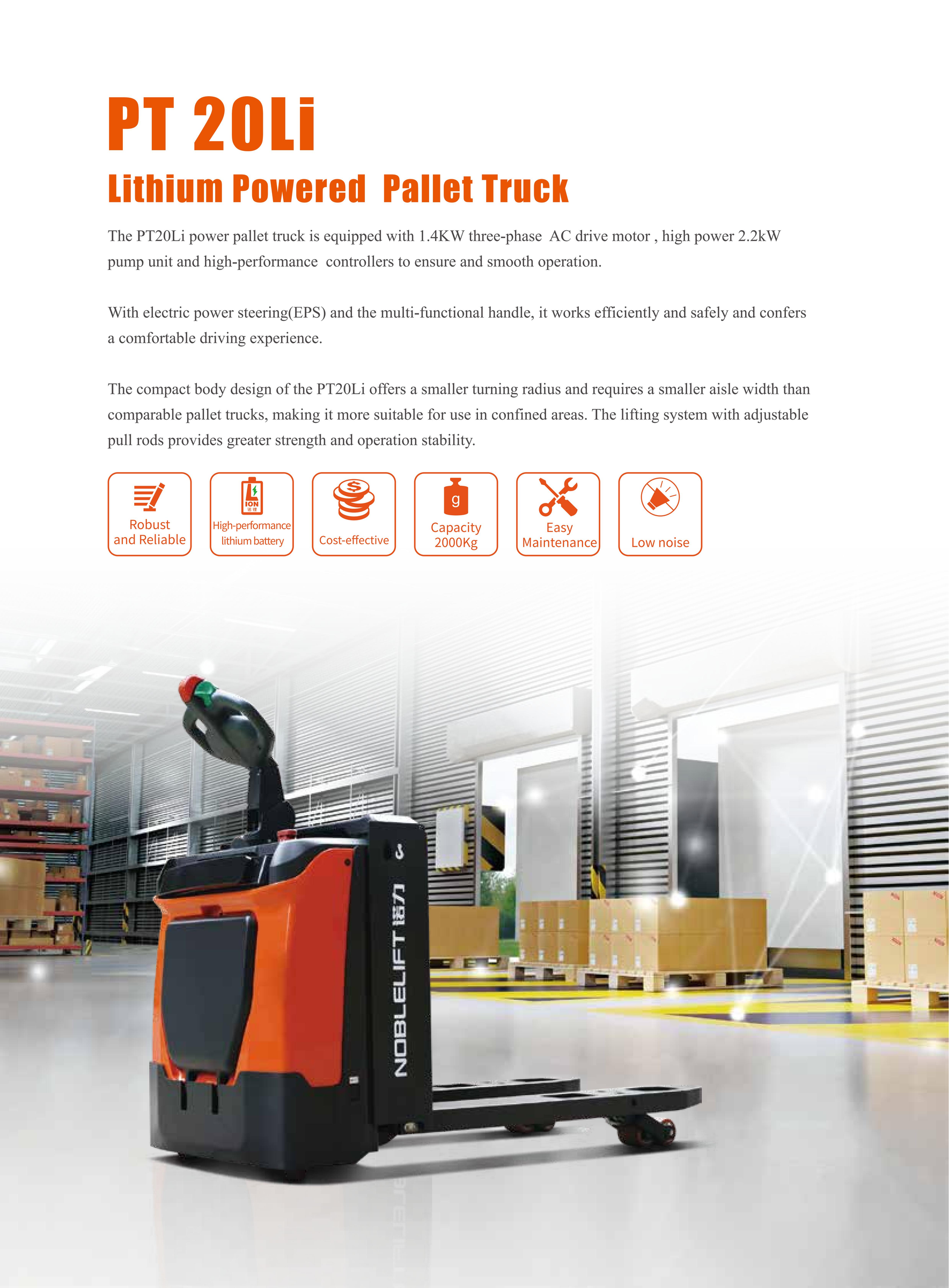

Official PT20Li product and drive-feature board; confirm the supplied configuration.
Match charging to the working shift
NOBLELIFT's feature board describes lithium power and opportunity charging. Review the planned duty and available charging periods against the supplied battery and charger. The published voltage and capacity describe the battery package, not a guaranteed operating time under every workload.
NOBLELIFT PT20Li lithium-battery feature board and loaded-pallet illustration.
Confirm operator and service features
The feature images show the tiller, instrument display, access control and a folding platform arrangement. Agree on the supplied equipment and operating position for the route. Keep access for inspection and maintenance, and confirm controls and charging procedures in the final documentation.

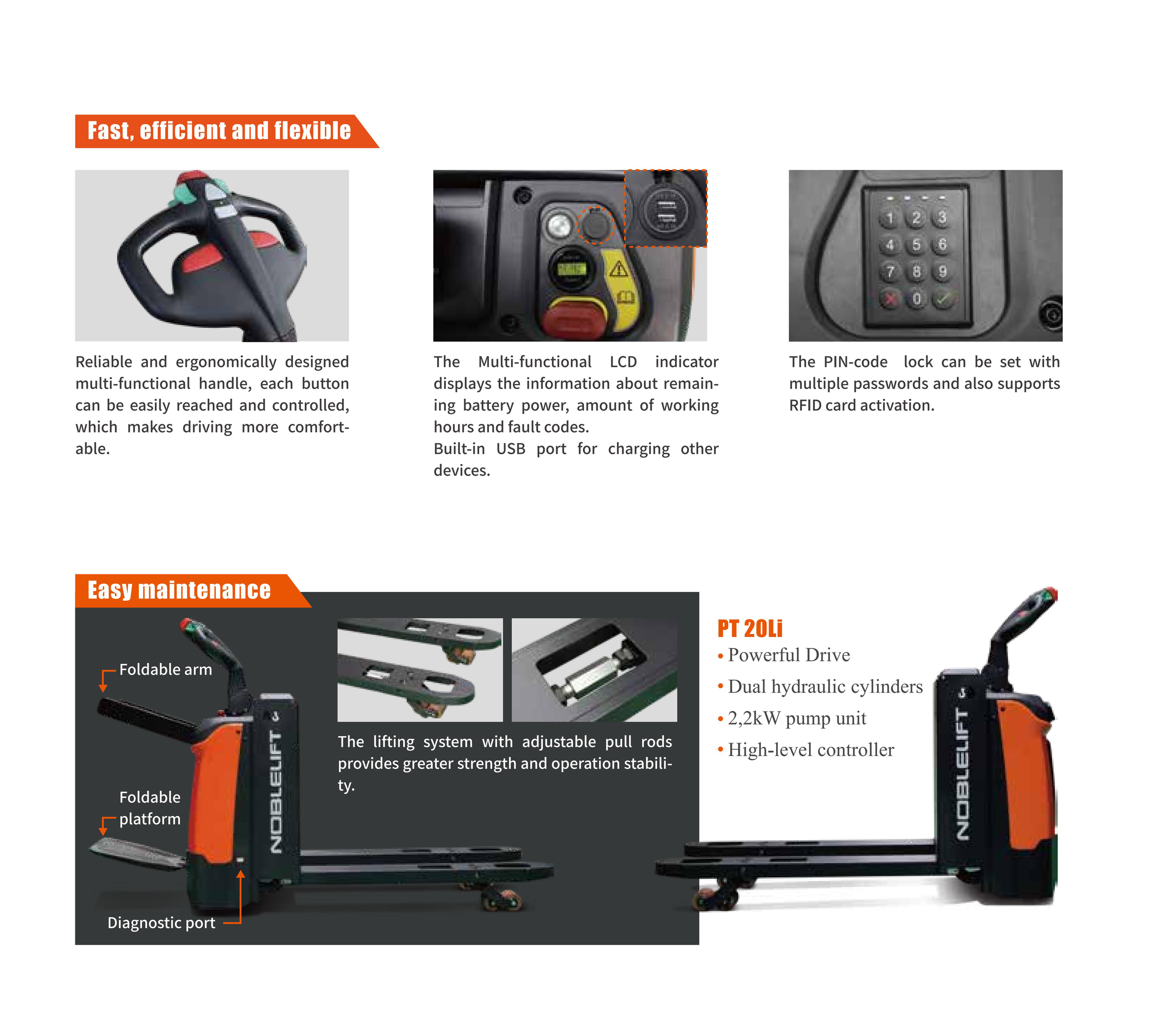

PT20Li control and service-feature board, including the illustrated folding platform.
Planning your configuration
- Provide pallet dimensions, maximum load, route, gradients and floor conditions.
- Confirm fork dimensions, lift specification, operator configuration and aisle requirements.
- Specify battery/charger package, charging opportunities and required access-control features.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T03:11:06.182002+00:00.
