Dual-lift arrangement
PT20I combines low-lift pallet transport with an additional mast lift for working at the load. The 2000 kg transport rating must not be treated as the capacity at every mast position. Confirm the load-height chart and pallet compatibility for the intended handling task.

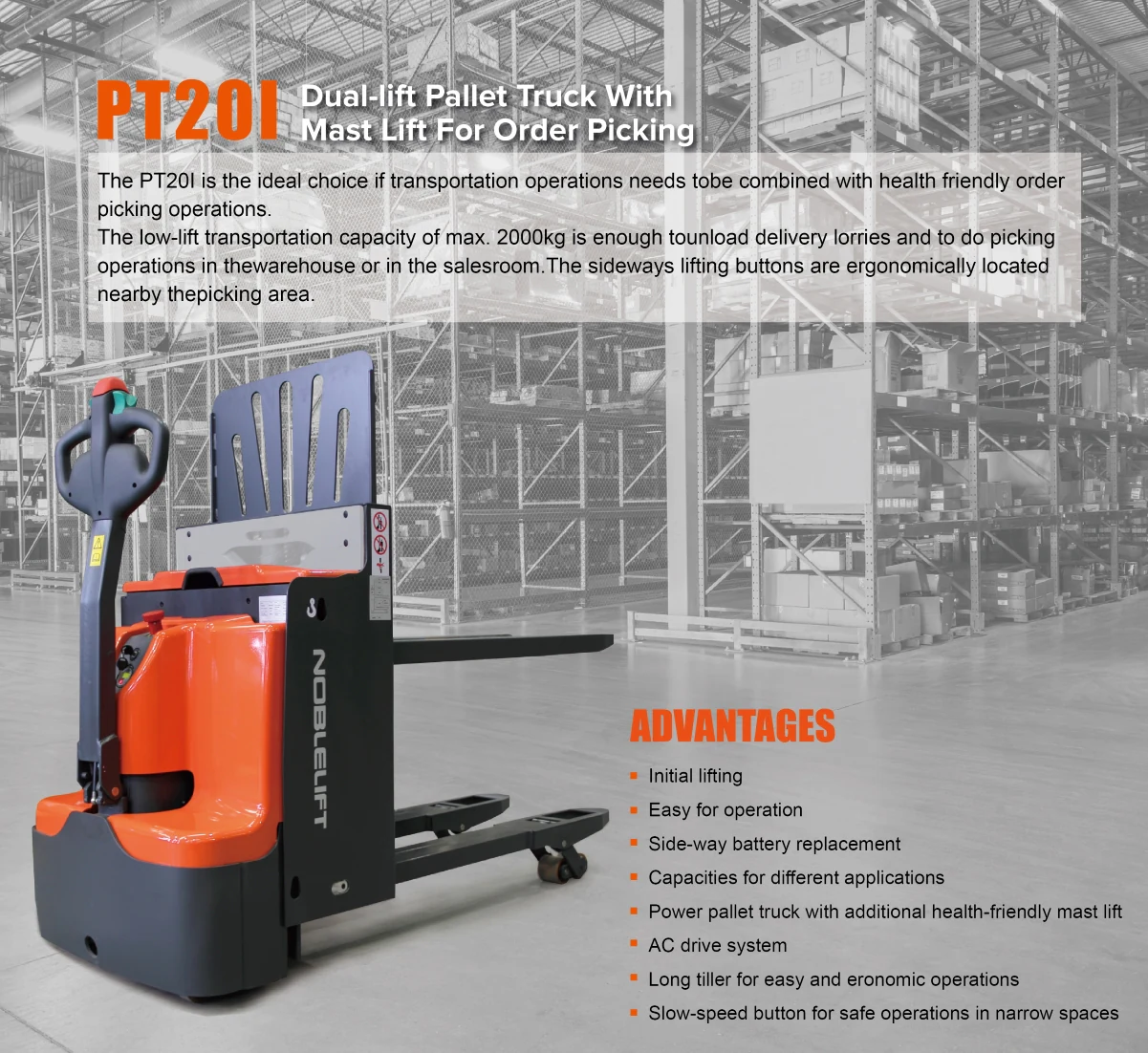

NOBLELIFT PT20I product illustration, labelled PT20I on the manufacturer's page.
Pallets and aisle planning
The published aisle value refers specifically to an 800 × 1200 mm pallet travelling lengthways. Check the actual pallet, load overhang and turning space before adopting that figure for a working layout.

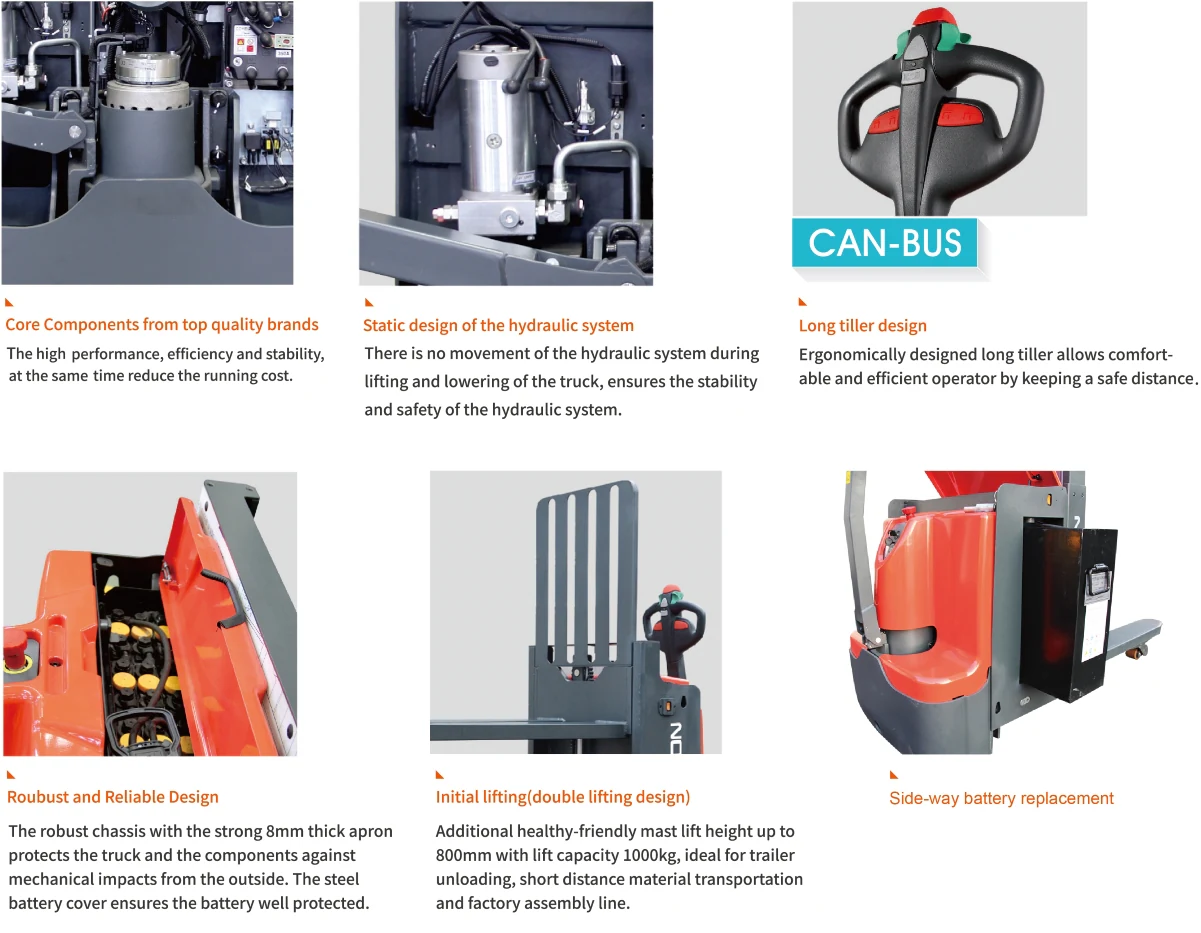

Manufacturer PT20I component and working-arrangement feature sheet; confirm lift-height and capacity details against the ordered version.
Duty cycle and charging
The parameter table lists a 24 V, 160 Ah battery. Battery capacity alone does not establish hours per shift. Describe travel distances, stops, lifting frequency and charging opportunities when selecting the final truck and charger.
Planning your configuration
- Request the confirmed dual-lift height/capacity chart: the web table and feature graphic differ, and transport capacity is not raised-mast capacity.
- Check floor condition, gradients, operating space and braking requirements.
- Confirm battery chemistry, charger, mains supply and local service parts.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T01:37:57.670499+00:00.
