Separate transport from raised-load handling
PT20D combines a powered pallet-truck chassis with a mast lift. NOBLELIFT's feature board explicitly separates the 2000 kg transport rating from 1000 kg with the forks raised. Use the rating for the operating mode and ordered mast rather than carrying the transport figure into a stacking decision.

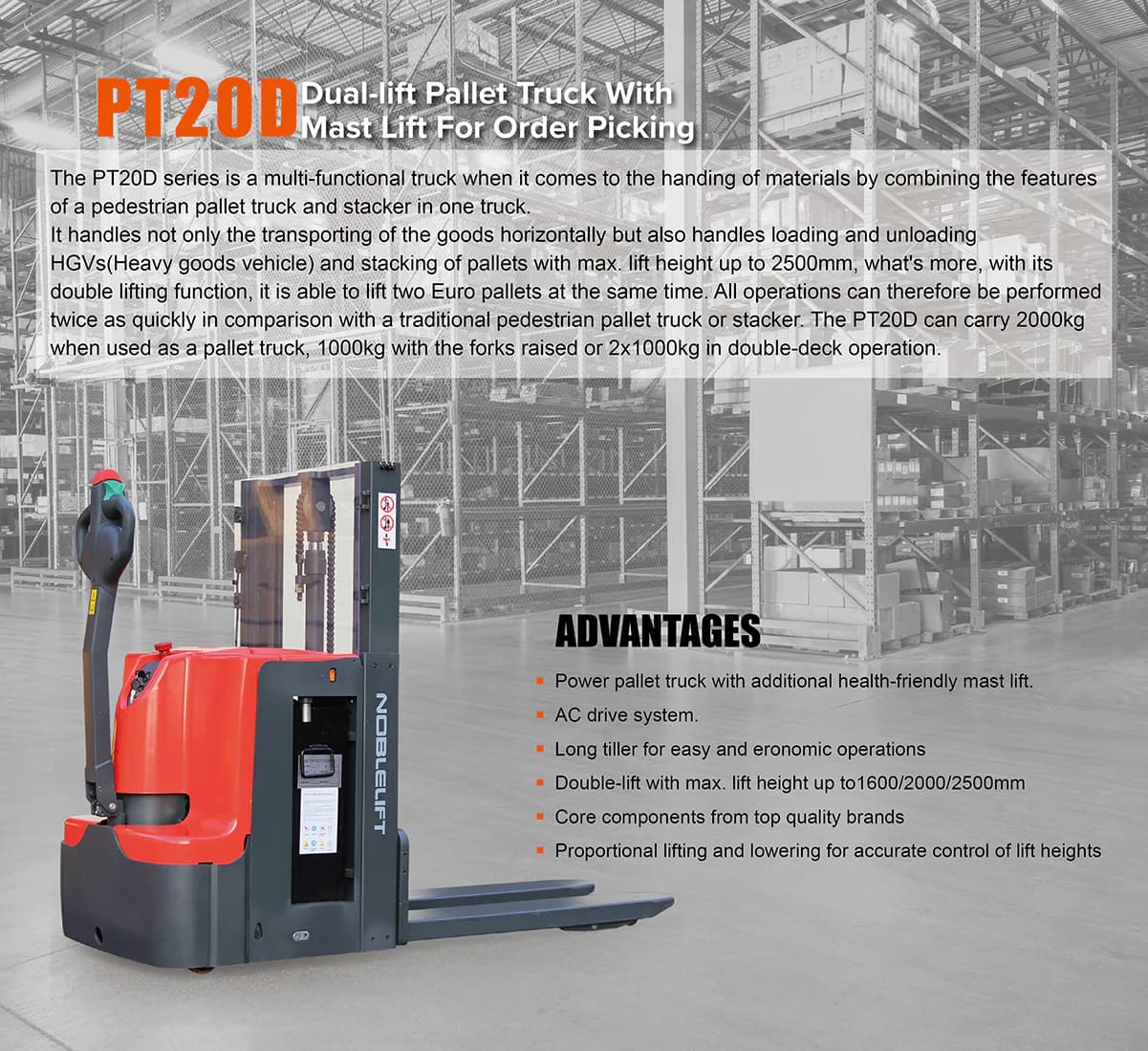

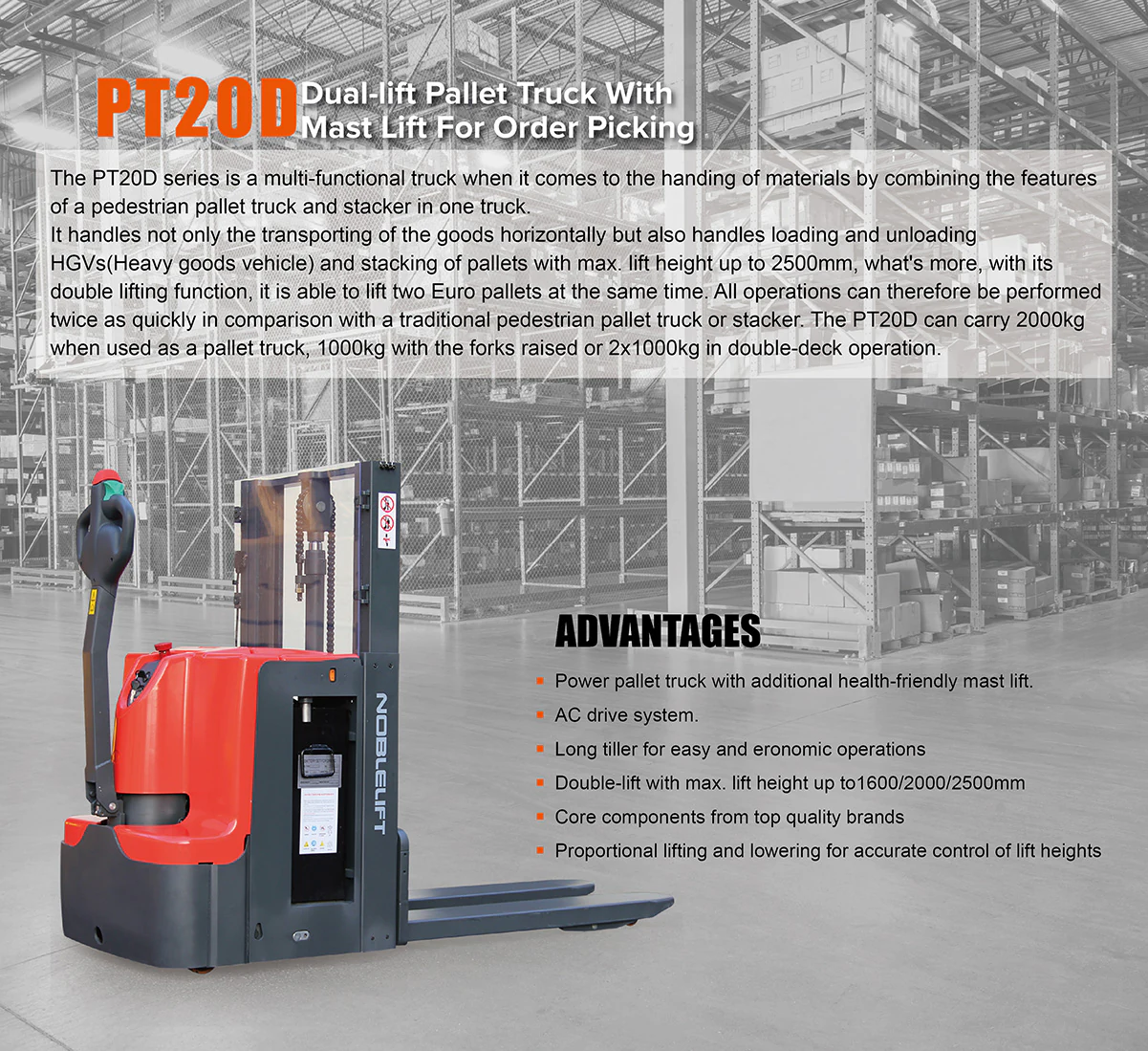

Official PT20D feature board: 2000 kg transport and 1000 kg raised-fork duties are distinct; confirm exact mast.
Use the additional lift where the job needs it
The mast can position a pallet above the low transport level, and the manufacturer's board describes double-deck operation. Check pallet compatibility, load distribution and available clearance before specifying that duty. The source presents differing mast-height alternatives, so the supplied mast and its load chart need confirmation.
Plan operator access and battery service
The PT20D feature images show a long tiller, side-mounted lift controls and a sideways battery-exchange arrangement. Match these features to the aisle and work position, and provide room to service the battery. Check charging arrangements and the operating shift against the listed battery specification.

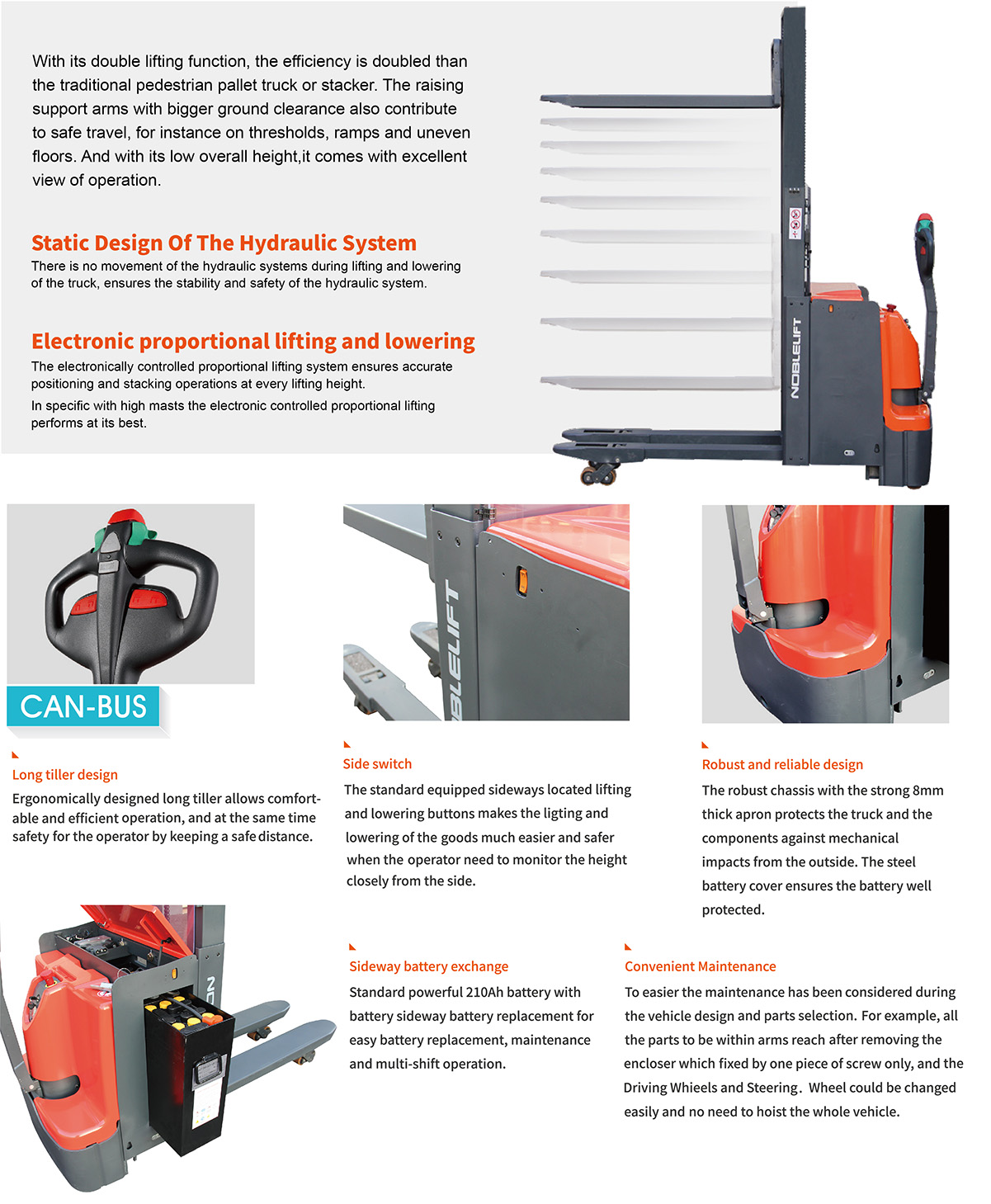

PT20D mast, controls and battery-exchange feature board; illustrated configurations require confirmation.
Planning your configuration
- State pallet dimensions, load centre, transport load and required raised-load duty separately.
- Obtain the exact mast height, residual capacity and double-deck load chart; website height alternatives conflict.
- Confirm aisle clearances, charger, battery access and the supplied control configuration.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T02:31:34.866218+00:00.
