Selecting the pallet-handling layout
The EPT15G table offers two overall-width values. Select the version around the pallet and entry arrangement rather than treating them as one adjustable dimension. Check load overhang and the complete manoeuvre when comparing the published aisle figure with a warehouse layout.

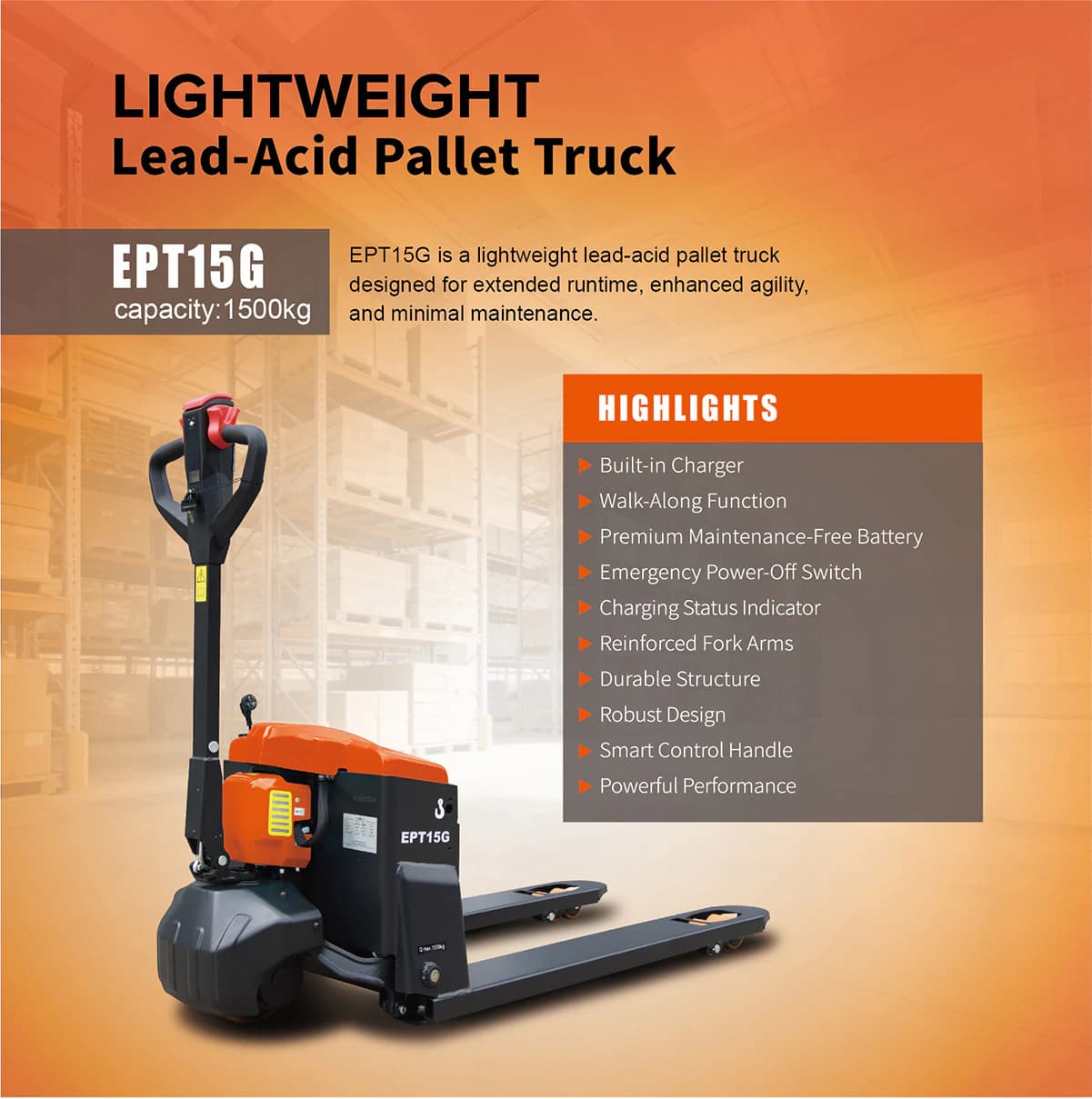

NOBLELIFT EPT15G model-labelled manufacturer sheet with complete truck view.
Controls and charging status
The illustrated sheet identifies the emergency power-off switch, charge-status indicator and walk-along control. Confirm these controls on the destination-market version and train operators using its manual. The illustrations explain locations and functions rather than proving a site-specific handling outcome.

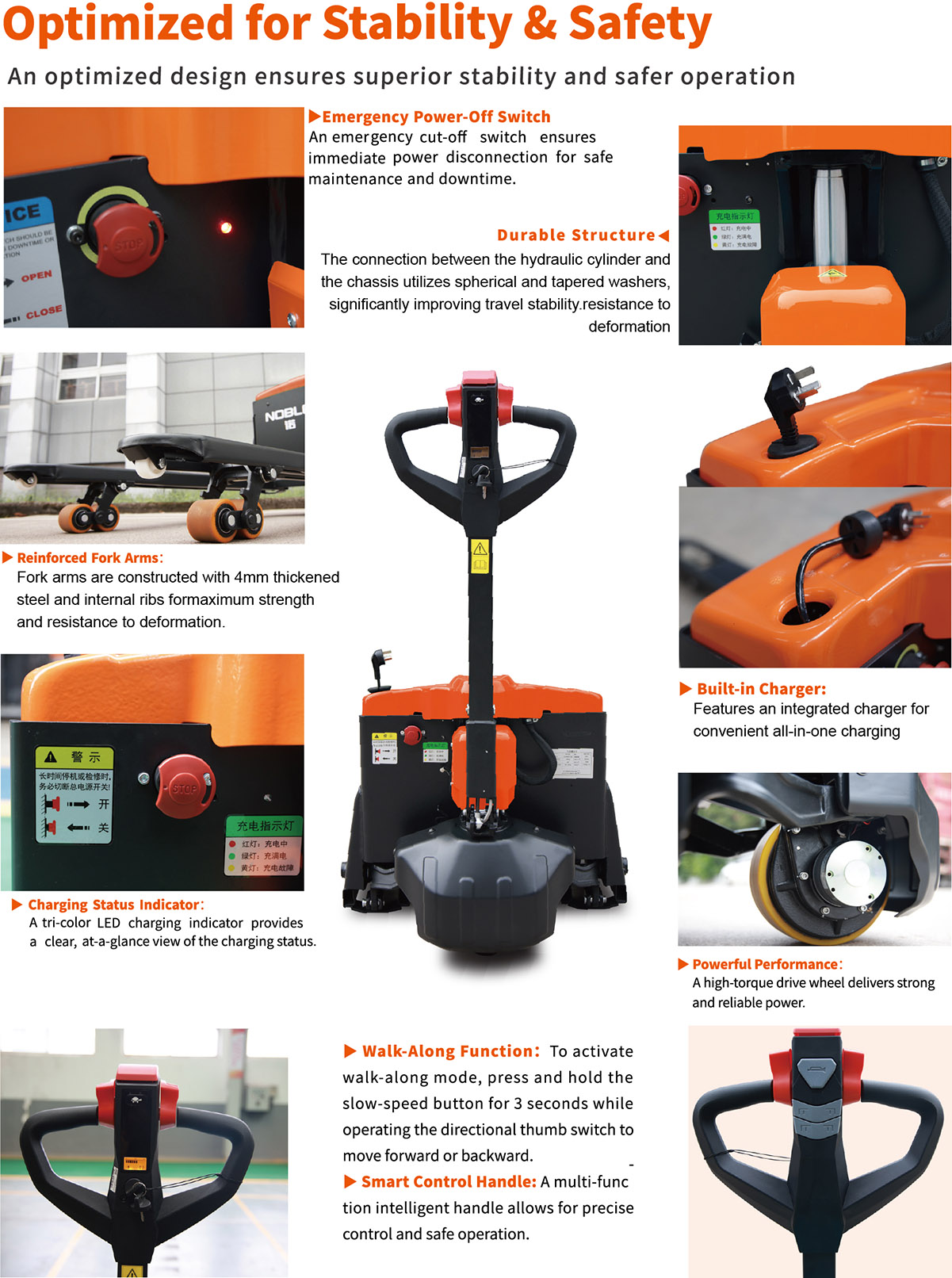

EPT15G manufacturer control, charger and chassis feature illustrations.
Battery and service access
The manufacturer's maintenance view shows battery and power-unit access beneath covers. Plan space for servicing and specify the mains connection for the built-in charger. Describe the shift duty when assessing runtime; battery capacity alone does not establish it.

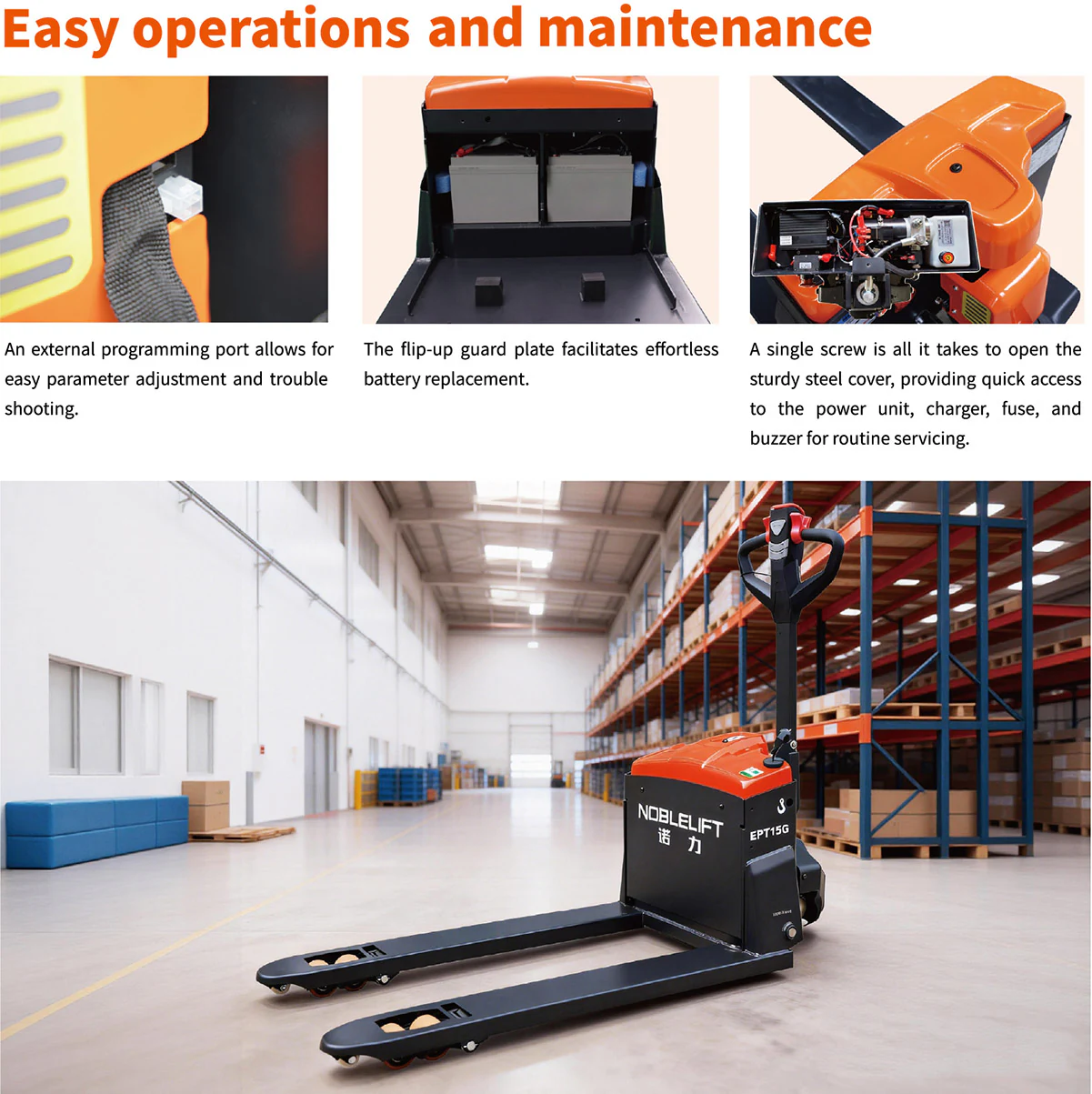

EPT15G official battery/service-access sheet and truck photograph.
Planning your configuration
- Specify pallet dimensions, load centre, route width and gradients.
- Confirm width/fork version, battery specification and charger input.
- Check maintenance clearances and duty-cycle suitability with the selected configuration.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T02:00:56.407211+00:00.
