Match the feed to the small PE crushing chamber
A jaw crusher compresses material between a fixed jaw and a moving jaw. The PE-150×250 table gives a 150 × 250 mm feed opening and a 130 mm maximum feed size; these model values are more useful than the much broader family-page headline ranges.
Describe the rock type, feed-size distribution, moisture and desired product before choosing the crusher. Confirm how oversize feed is excluded and how material reaches the chamber without relying on an unsupported shovel-feed production rate.

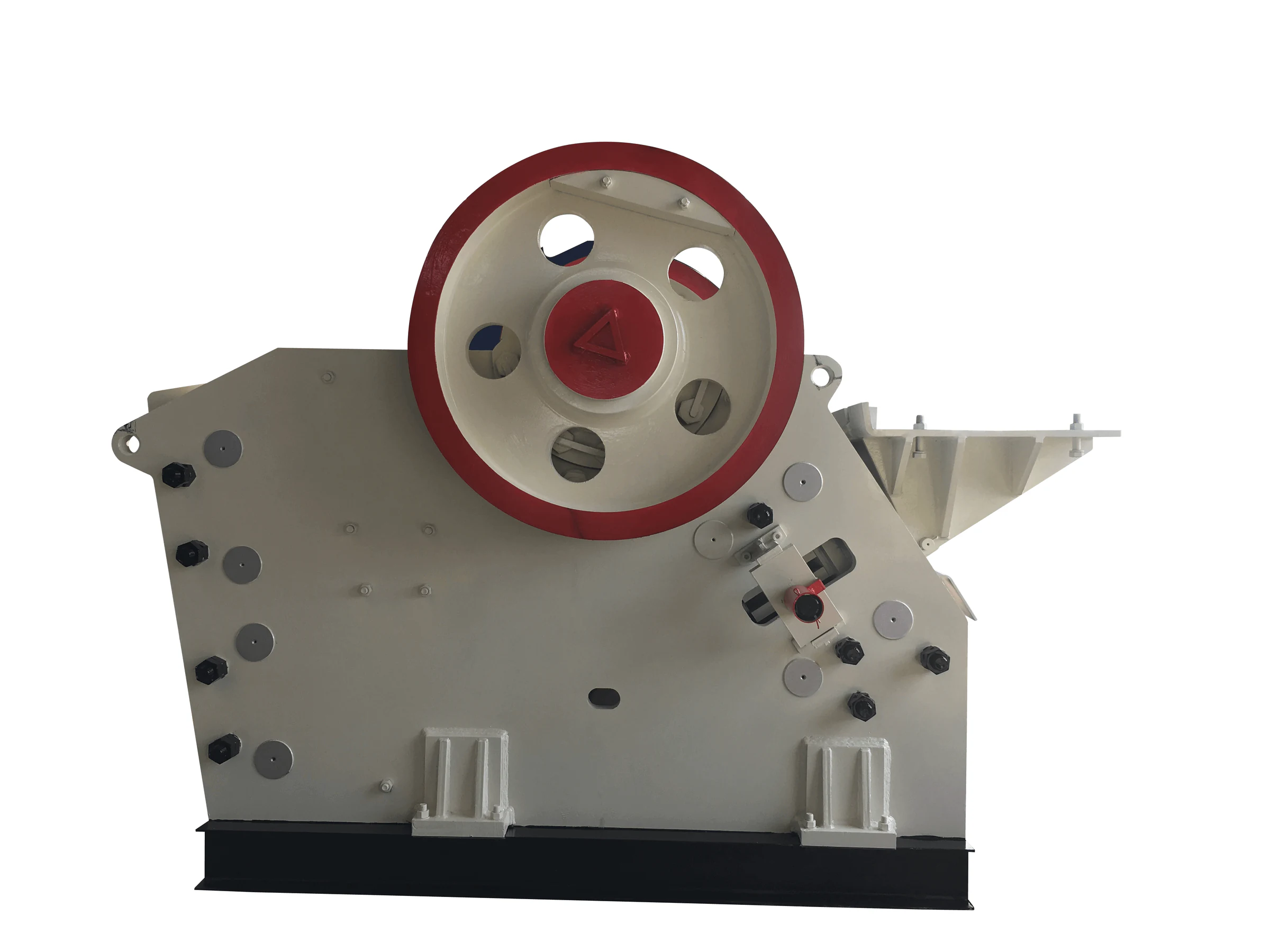

JXSC PE-family jaw-crusher manufacturer photograph. The pictured size is not confirmed as PE-150×250.
Treat capacity as a circuit selection range
JXSC lists 3–15 t/h and a 10–60 mm discharge-size range for this row. A particular product grading and throughput must be assessed with the material and selected setting; the upper capacity is not a universal output promise.
Include the required product-size distribution, downstream screen and any recirculation in the circuit enquiry. Ask for representative material testing or an application-specific calculation, including what happens to fine or sticky material at the feed.
Specify drive, foundation and wear parts together
The published PE-150×250 row gives a 5.5 kW motor, 2.2 t weight and 1000 × 1450 × 900 mm overall dimensions. The manufacturer photographs show the family frame and flywheels, rather than an approved installation drawing for this exact size.
Request the current foundation loads, anchor layout, motor and belt-guard arrangement, discharge clearance and maintenance access. Include jaw plates, cheek plates and the required adjustment tools in the wear-parts discussion, with exact part numbers matched to the supplied crusher.

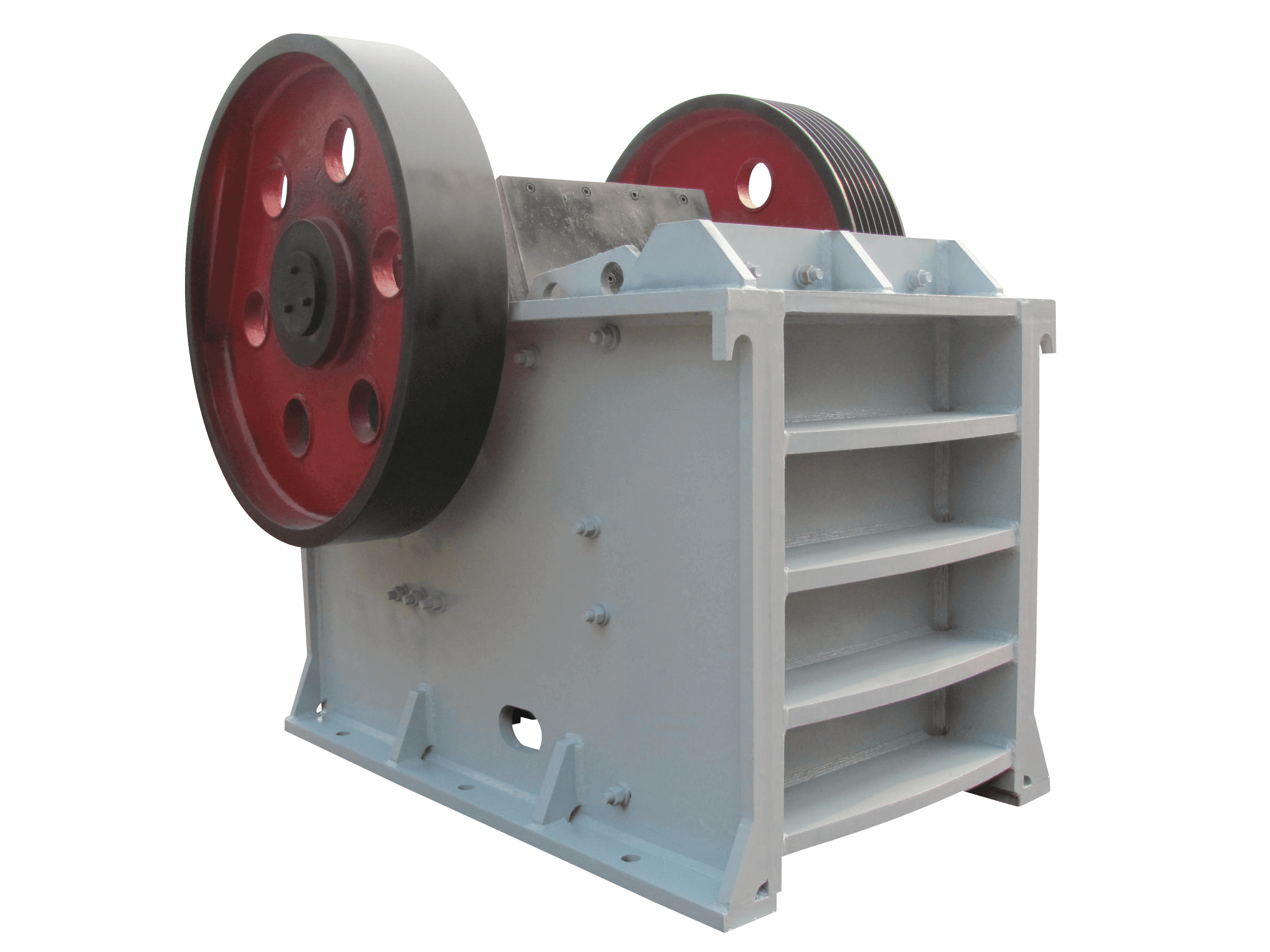

Second JXSC PE-family manufacturer photograph. Motor, guarding, foundation and exact scale require an order-specific drawing.
Planning your configuration
- Provide rock properties, feed grading, required final grading and throughput. Confirm the PE rather than PEX variant and the discharge setting for the application.
- Use an approved layout to confirm foundation, drive and guarding. Family photographs and table capacities do not establish stock, inspected condition or a completed GLOBSEEK crushing project.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
