A large twin-shaft cutting area
The TDH1216 parameter block gives a 1600 × 1200 mm cutting chamber. Relate that opening to the size and presentation of the incoming waste. A material trial should establish the usable feed rate rather than relying on the wider TDH family's maximum throughput.

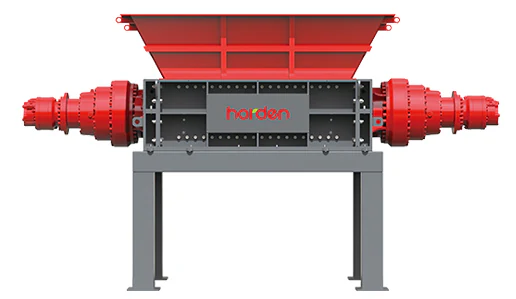

Harden TDH-series front rendering; exact pictured TDH model is not identified.
Hydraulic reversal and load control
Harden describes a hydraulic drive able to reverse the cutting shafts and adjust speed and torque. Confirm the supplied hydraulic unit, cooling arrangement and overload-control sequence for the duty. These are equipment-selection details, not a guarantee that all contaminants can be processed.

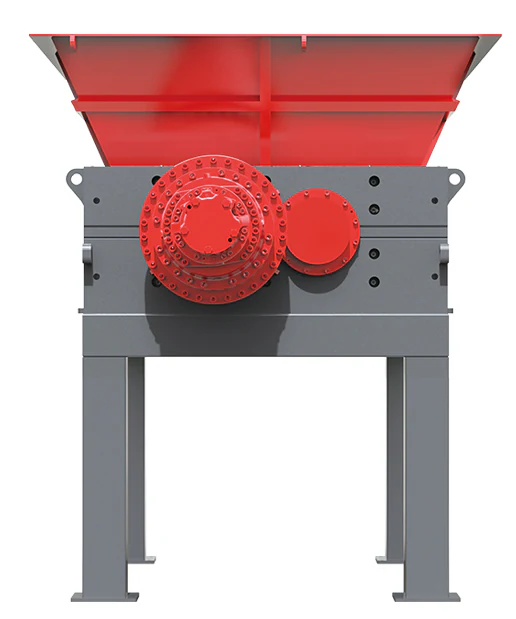

TDH-series side rendering from the manufacturer; series reference for the TDH1216 description.
Choosing the cutting arrangement
The model table lists alternative knife thicknesses and counts. Agree on the required cut, downstream separation and maintenance strategy before selecting them. Request the complete installation drawing, including hopper, support frame and discharge clearances.

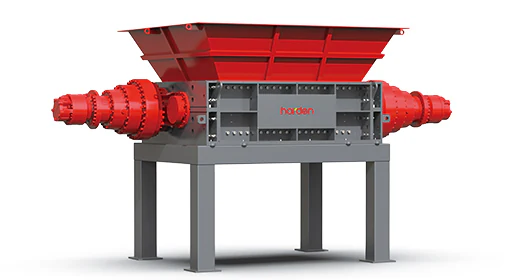

TDH-family angled rendering; confirm the ordered TDH1216 hopper and hydraulic package.
Planning your configuration
- Provide representative waste, feed dimensions and contamination limits.
- Confirm knife pairing, hydraulic cooling, duty cycle and wear-parts scope.
- Request the complete installed dimensions and foundation loads; do not use the low table height as a full-machine envelope.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T02:00:05.390455+00:00.
