Match the weighing batch to the mixer
PLD800 provides a 0.8 m³ weighing hopper and a separate 1500 kg maximum weighing figure. Relate both to the actual aggregate bulk density and batch recipe. The listed 48 m³/h output is a batching-unit figure and does not determine the finished-concrete output of a complete line.

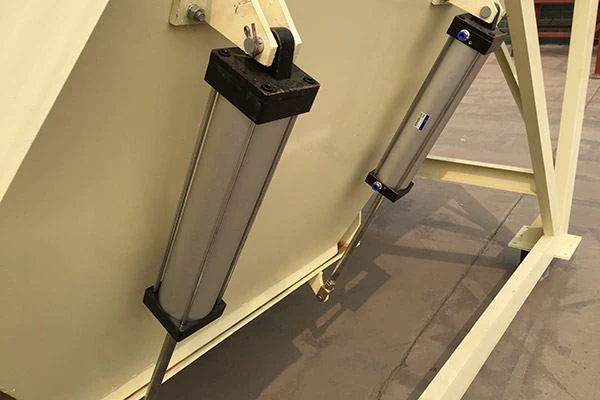

PLD-series discharge-gate component; no exact PLD800 installation is identified.
Choose the required aggregate arrangement
HAMAC lists two or three aggregate types for this model. Establish the required material separation, loader approach and replenishment cycle before choosing the bin arrangement. Confirm how the storage-hopper volume is defined in the supplied layout.

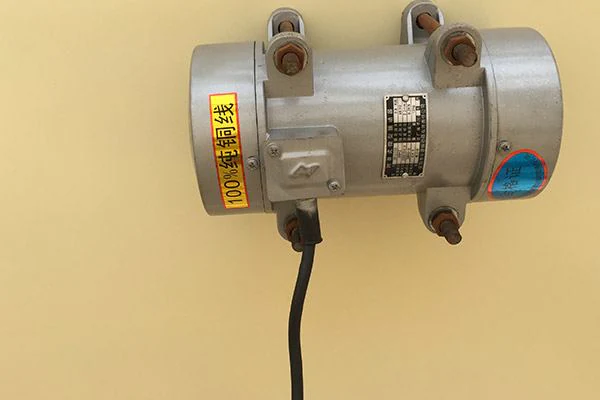

HAMAC PLD-family vibration component reference; confirm selected configuration.
Maintain reliable discharge and measurement
The PLD-family gallery shows gate, vibration and pneumatic details. Discuss moisture, fines and bridging behaviour for the intended aggregate, and provide access for calibration and inspection. Coordinate each weighing/discharge cycle with the downstream conveying and mixer controls.

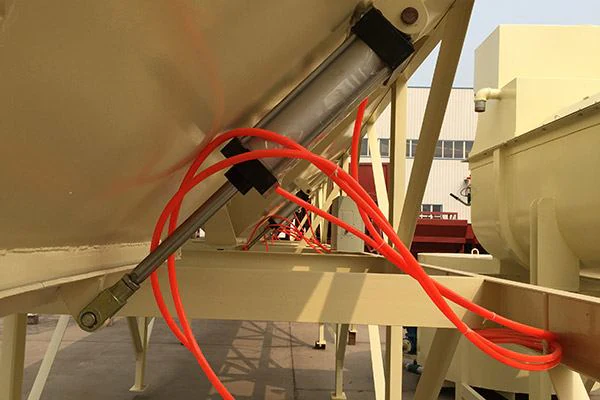

Manufacturer PLD-series pneumatic assembly illustration; series reference.
Planning your configuration
- State aggregate types, grading, moisture, bulk densities and the mixer batch recipe.
- Confirm bin allocation, usable volume, loading route and calibrated accuracy.
- Request exact PLD800 layout, foundation loads, compressed-air needs and control scope.
