Planetary mixing action
The MP range combines rotation and revolution of the mixing arms. Its cutaway explains the relationship between the drive, arms and trough. The illustration is a series reference; it does not establish the exact supplied MP500 configuration.

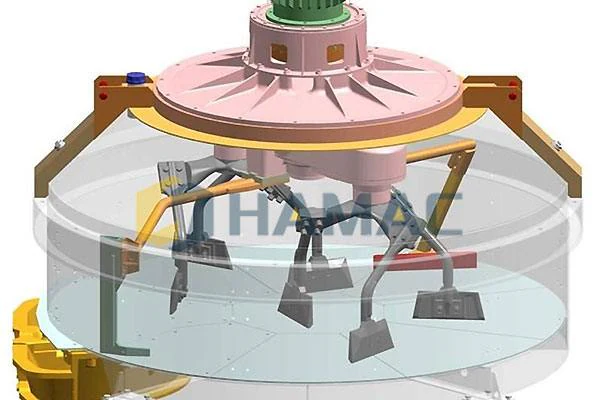

Manufacturer-page MP-series cutaway showing mixing arms and trough; series reference.
Batch size and production planning
MP500's 500 L output is a batch-volume figure, not an hourly plant rate. Weighing, loading, mixing time and discharge all affect the production cycle. Check the required recipe and downstream demand before selecting the surrounding batching system.

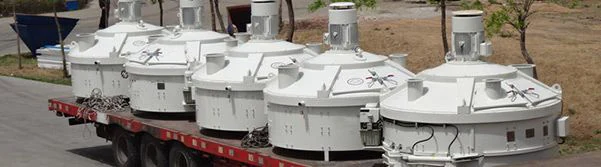

MP-series mixers photographed on HAMAC's product page; exact pictured sizes are not identified as MP500.
Drive, access and discharge
HAMAC describes a geared drive and selectable discharge arrangements for the family. Confirm the actual gates, opening mechanism and maintenance interlocks on the ordered mixer. Reserve space for wear-part replacement and cleaning around the installation.

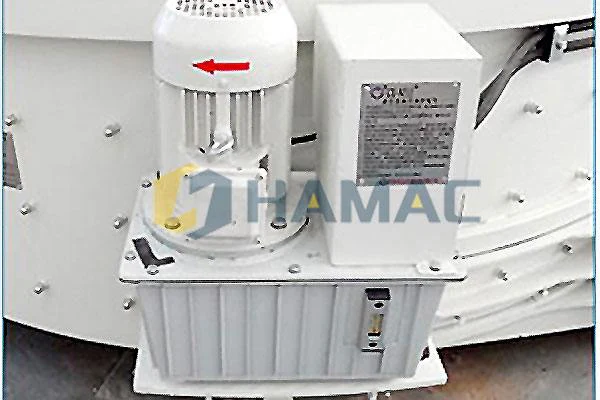

MP-series drive detail from HAMAC's page. Original visible maker markings are retained; exact photographed model unconfirmed.
Planning your configuration
- Specify concrete recipe, aggregate size, batch time and required discharge route.
- Confirm mixer maker/nameplate, drive configuration, wear liners and spare parts.
- Request foundation loads, installation drawing and complete utility list.
