Usable space and batch layout
The working chamber and external dimensions are separate figures. Plan the fixture together with the parts, and leave the air passages needed around a load. The manufacturer's dimensioned image helps distinguish the chamber from the complete oven envelope.

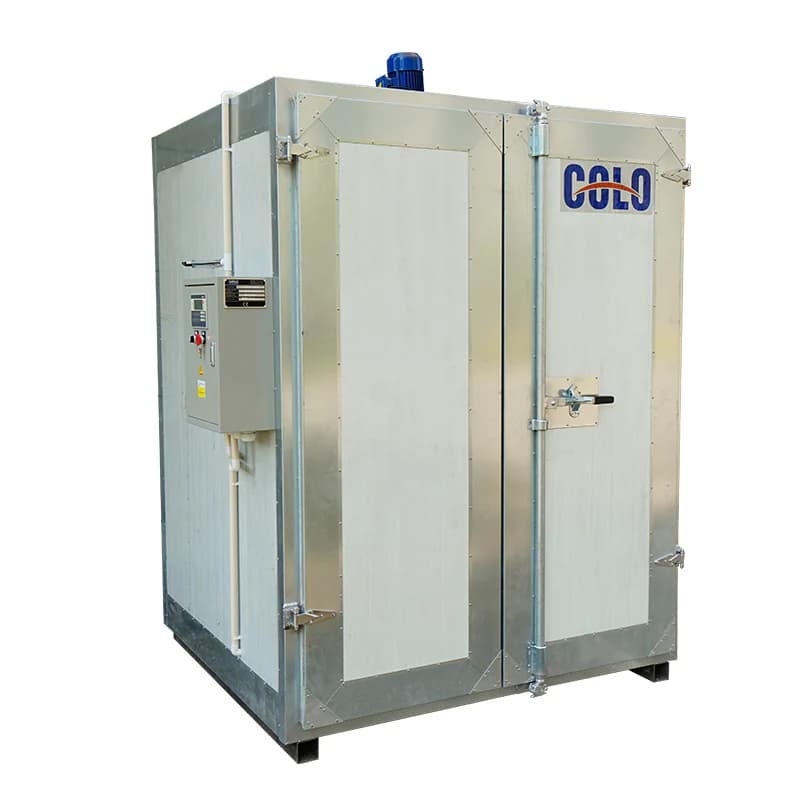

COLO-1864 model-labelled manufacturer gallery view.

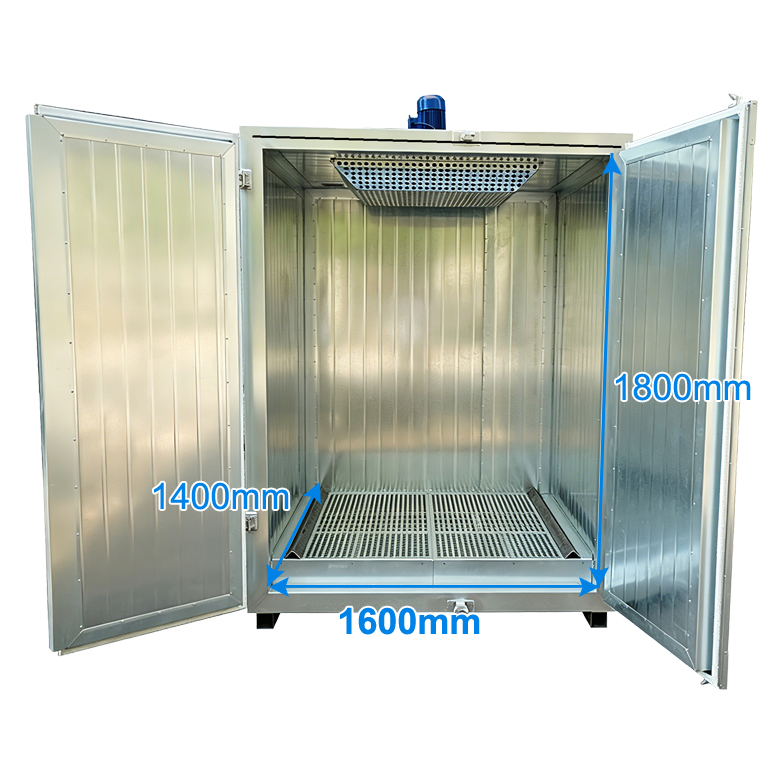

Manufacturer COLO-1864 dimensioned illustration; dimensions must match the ordered configuration.
Trolley loading
COLO describes an internal frame trolley supported outside the oven by a separate transfer cart. Confirm the wheel and rail arrangement, doorway clearance and load rating for the intended workpieces. Space is also needed to handle a batch in front of the door.

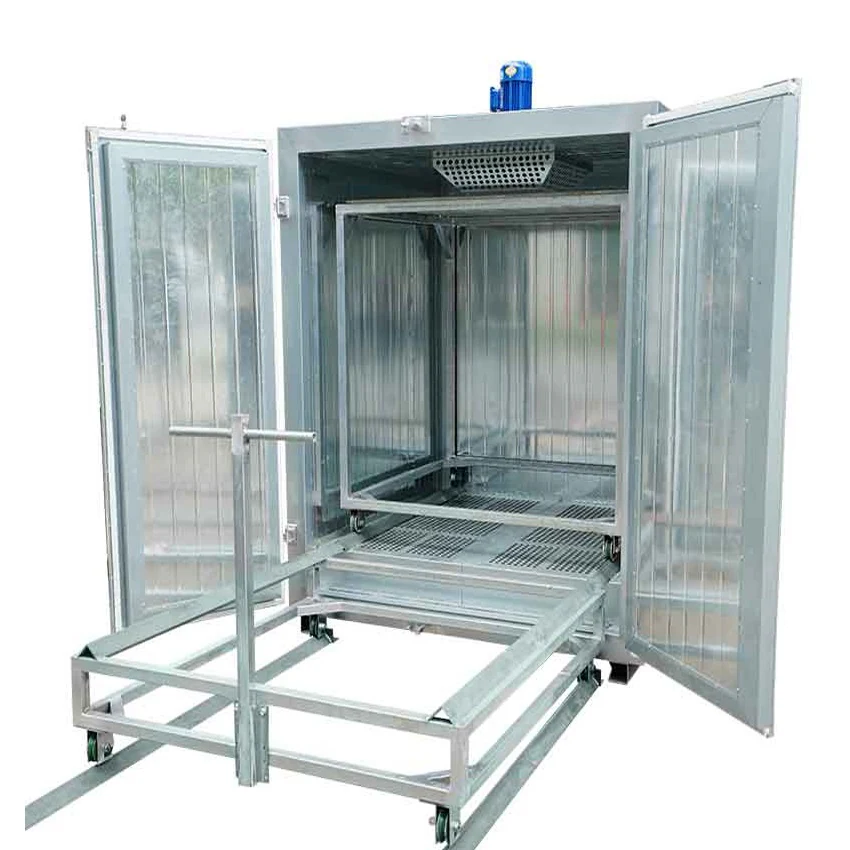

COLO-1864 page illustration of the trolley/loading arrangement.
Heating and process acceptance
Electric heating and circulation provide chamber heat, while the controller sets temperature and time. Validate the loaded process using the coating's required cure schedule and part temperature. An unloaded warm-up reference should not be substituted for the finished-part acceptance cycle.
Planning your configuration
- Provide part/fixture dimensions, batch mass and coating cure requirements.
- Confirm trolley load rating, electrical demand, wiring and ventilation.
- Request a loaded uniformity check and installation/service-clearance drawing.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T01:54:47.485027+00:00.
