Compact chamber and hanging layout
The COLO-1688 uses shelves and rails to hold coated workpieces. Check the complete part, hanging hook and clearance for hot-air movement against the usable chamber; nominal part dimensions alone do not define a practical batch.

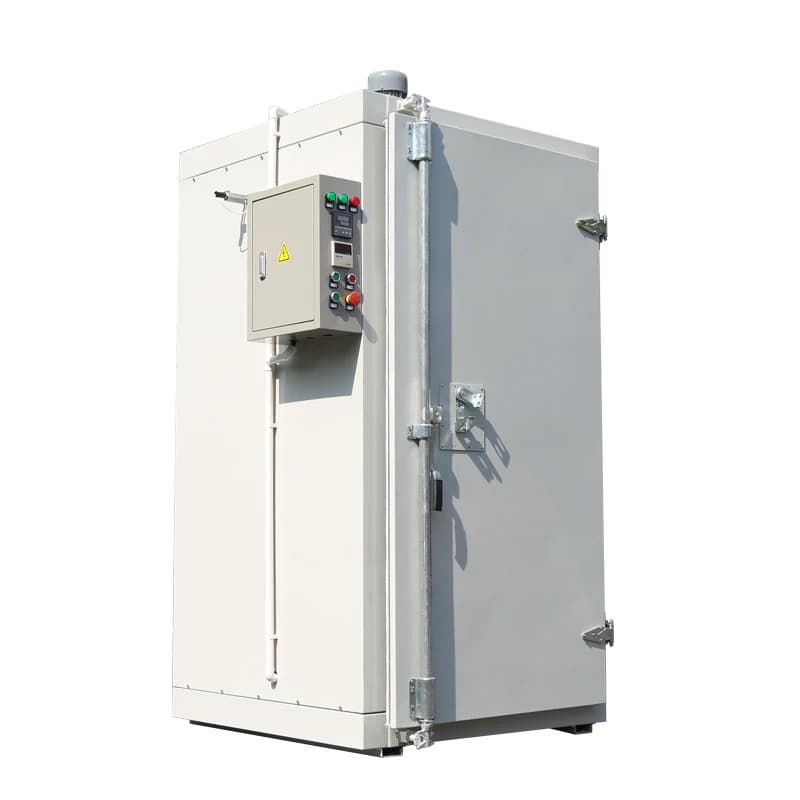

COLO-1688 manufacturer gallery image of the compact curing oven.
Electric heating and circulation
Heating tubes are fitted at the oven base behind a protective mesh plate. A circulation fan moves heated air through the chamber. Confirm the connected electrical load and the protective arrangement for the destination supply.

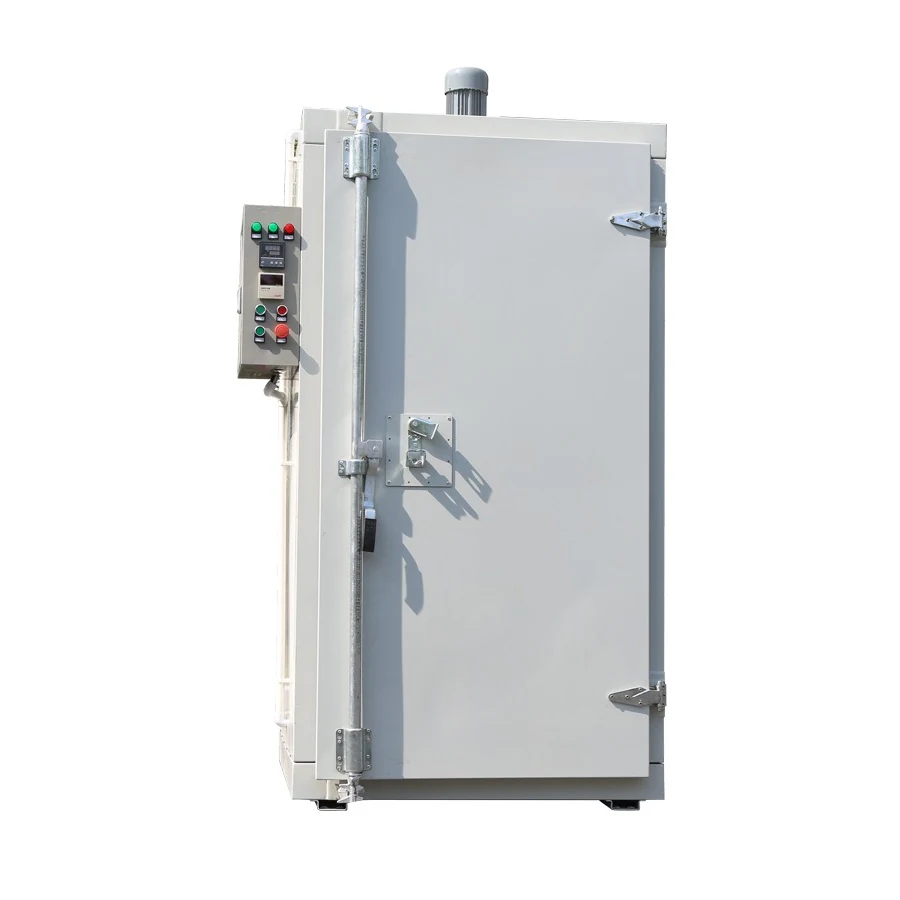

Second COLO-1688 product-page gallery view.
Time and temperature control
The controller sets time and temperature and displays chamber temperature. The manufacturer's warm-up reference is not a universal powder cure time. Establish the required metal temperature and hold time for the actual coating and load.

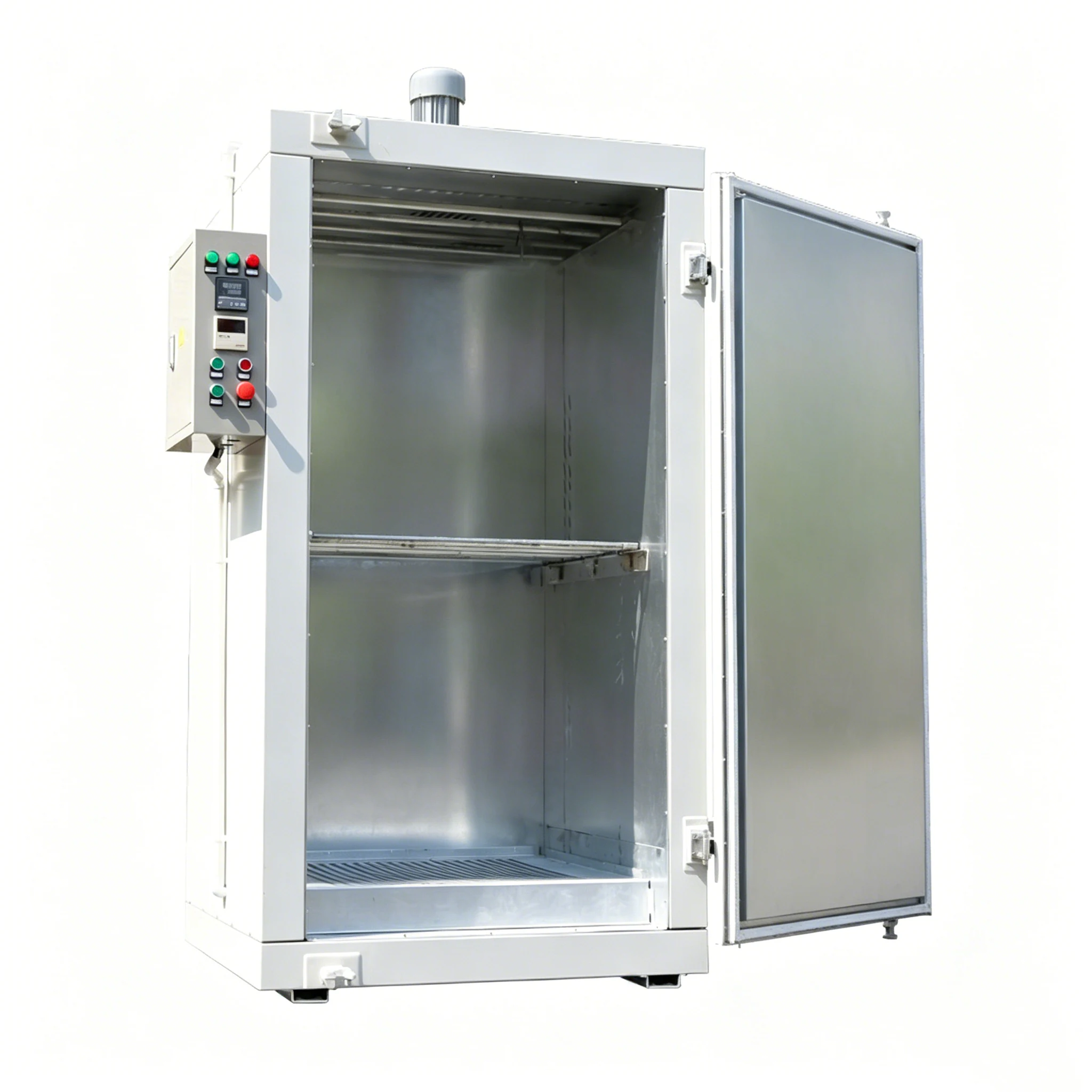

COLO-1688 illustration embedded in the manufacturer's model description.
Planning your configuration
- Provide part sizes, hanging arrangement, batch mass and coating cure schedule.
- Confirm heater voltage, wiring, ventilation and installation clearances.
- Request loaded temperature-uniformity and commissioning checks.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T01:40:05.668763+00:00.
