Check the working space against the rack
The dedicated COLO-3210 detail page gives a 3100 mm working depth, while an overview rounds that dimension to 3 m. Use a final model-specific drawing to check the part, rack and door clearance. Keep the specified free space around the load for air circulation.

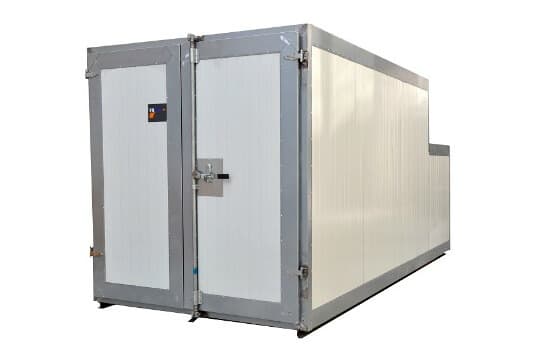

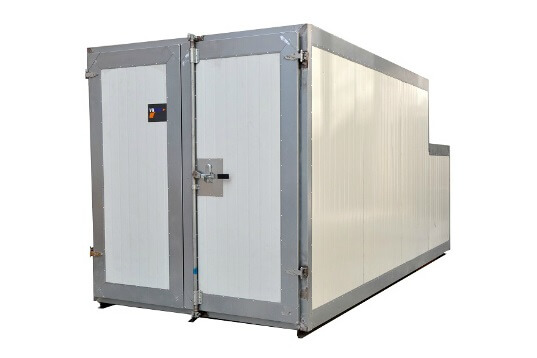

Oven exterior in COLO's COLO-3210 dedicated gallery; confirm final dimensions and supplied configuration.
Match the burner and cure cycle to the process
The page lists gas/LPG heating and PLC settings for temperature and duration. Confirm the burner and fuel supply for the installation, then validate the cycle using the powder supplier's cure instructions and actual part temperatures. The listed oven maximum is not a prescribed curing temperature.

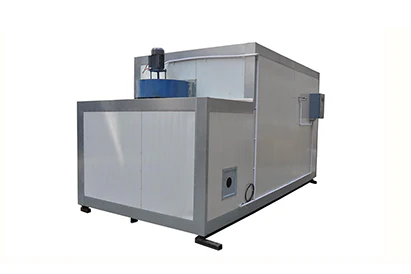

Rear and circulation-module view from the COLO-3210 gallery; no conflicting motor figure is inferred from the image.
Confirm utilities and trolley handling
Arrange trolley movement, hot-part access and the process-exhaust route around the final layout. The manufacturer's motor figures differ between its detail block and comparison table, so no motor rating is adopted here. Request the current utility schedule and loading limits rather than combining conflicting web entries.
Planning your configuration
- Provide part and rack dimensions, batch mass and the coating cure schedule.
- Confirm final working/installed dimensions, burner fuel, utility demand and required exhaust.
- Obtain a current motor and burner specification; conflicting published motor figures are not assumed to describe proven variants.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20T03:32:42.596224+00:00.
