Understand the spray-injection repair arrangement
Cimline describes the P2 as a two-person patcher using its DuraPatcher delivery system. A blower and venturi arrangement deliver aggregate, while the nozzle coats the material with emulsion. The boom supports nozzle handling around the repair area.
The manufacturer photographs show the P2 trailer and the arrangement of its tank, engine and boom. They are product-reference photographs from Cimline, without implying that GLOBSEEK owns this unit or completed the pictured road work.

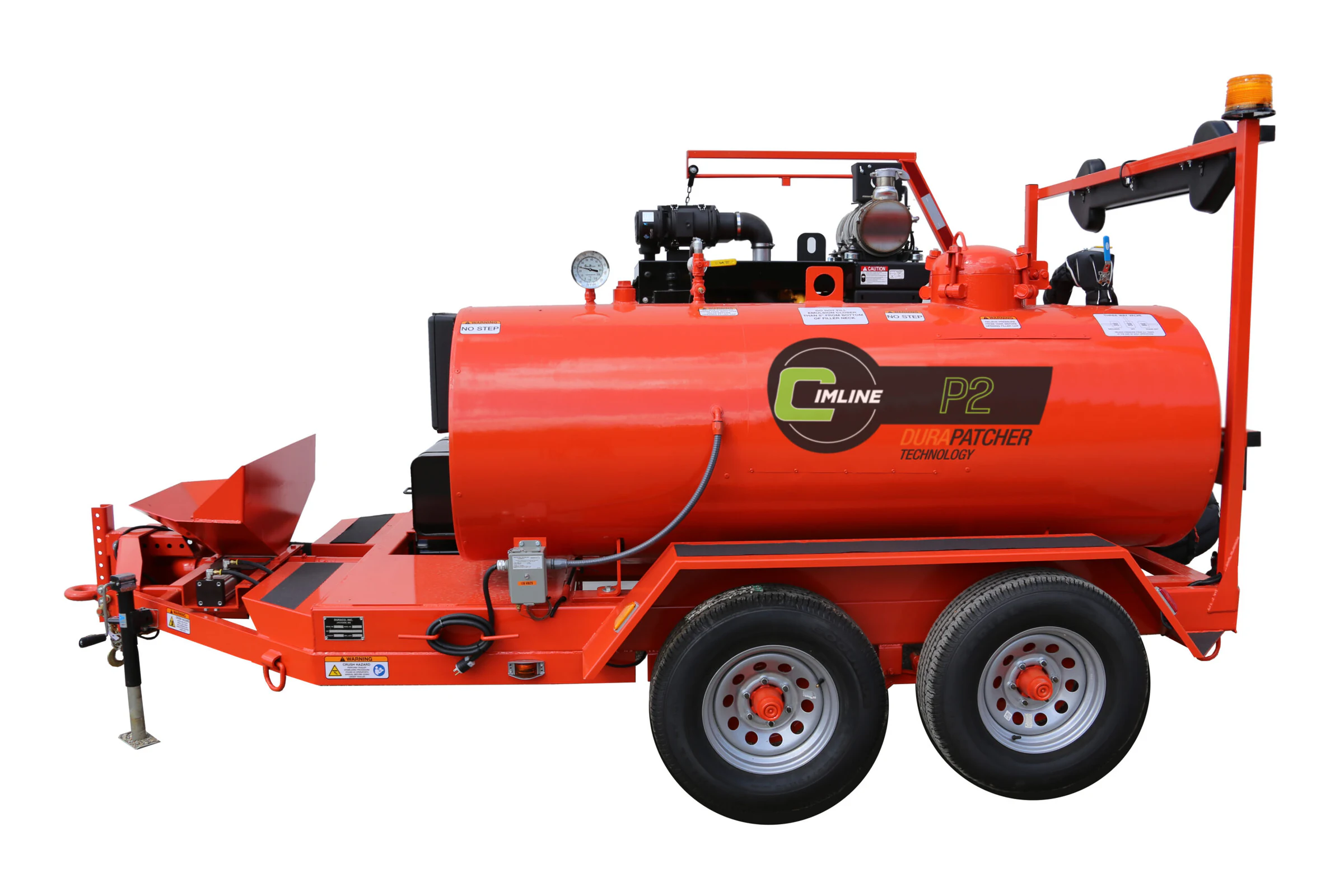

Cimline P2 manufacturer product photograph, port side.

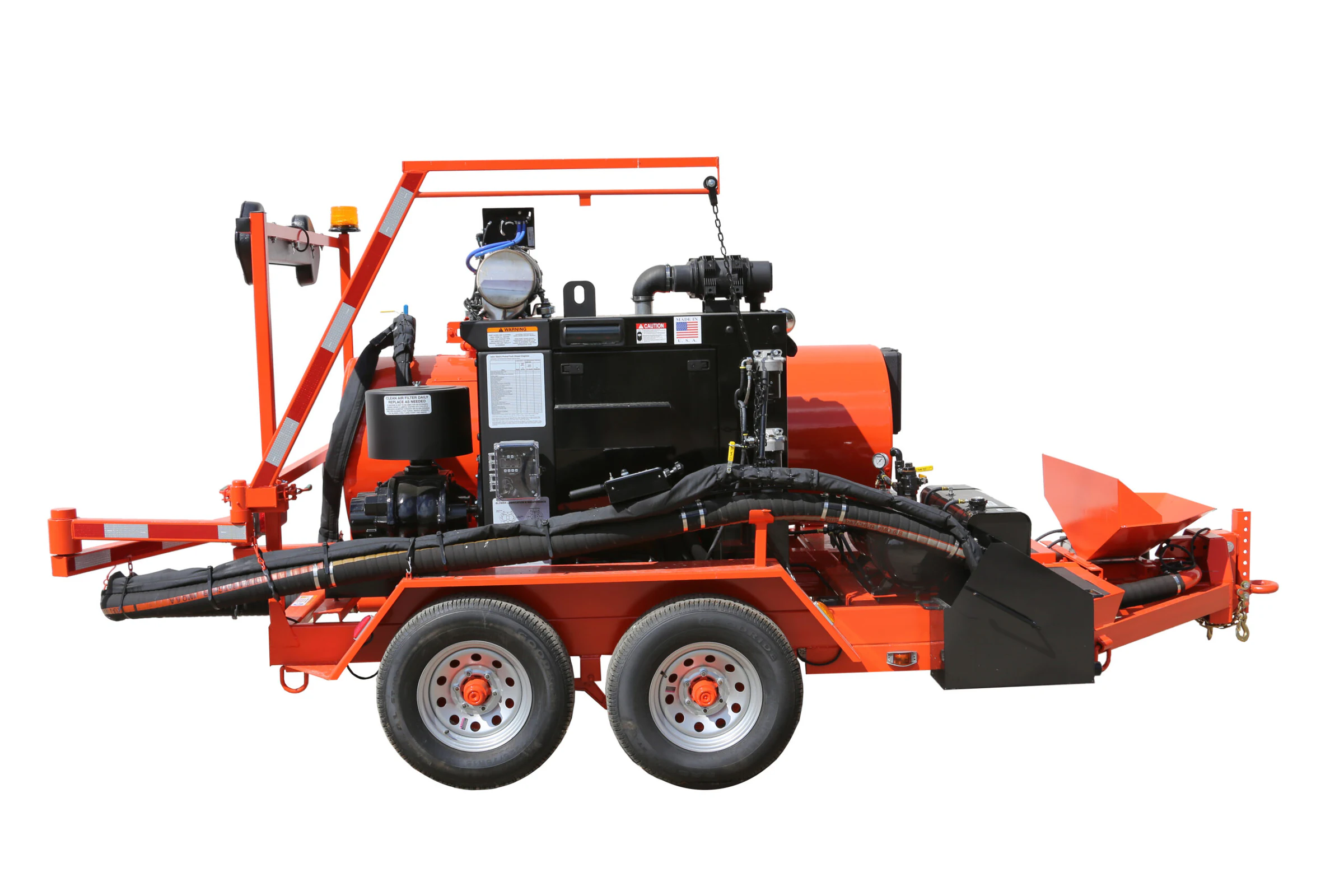

Cimline P2 manufacturer product photograph, opposite side.
Plan the repair material and support equipment
The official page illustrates stages including tack application, filling and covering. Agree the required repair process and material grading with the road specification. The pump and delivery system must be matched to the chosen emulsion, aggregate and expected site conditions.
The P2 tank capacity does not describe a complete day’s output. Travel, material replenishment, repair size and traffic management affect the operating cycle. Define how aggregate and emulsion reach the machine and how the crew will move between repair locations before comparing productivity.

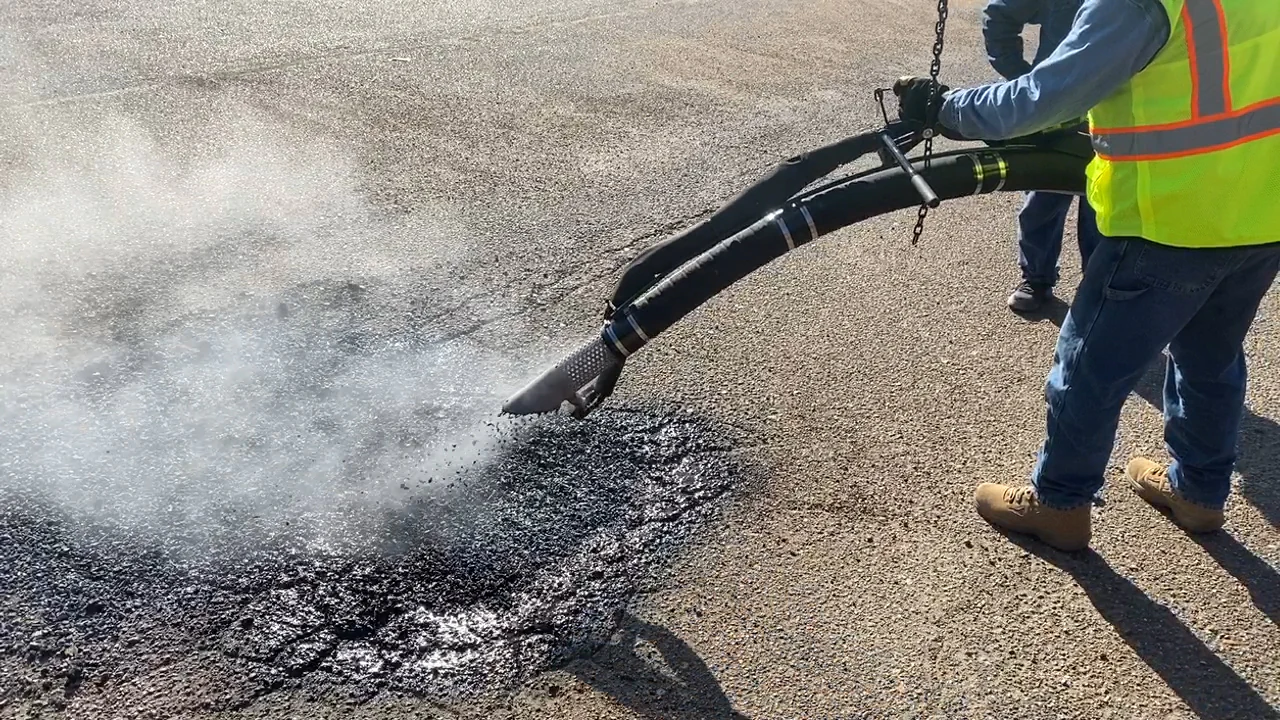

Manufacturer P2 application photograph showing the filling stage of spray-injection patching. Source: Cimline.
Check towing, power and the current build
Cimline lists a tandem-axle trailer with electric brakes and a 10,400-pound gross vehicle weight rating. The published shipping weight is a separate figure; confirm the loaded weight, hitch, tow-vehicle rating and local road requirements for the intended configuration.
The product table lists electric blanket heating for overnight use. Confirm the available supply and the temperature-management arrangement with the intended emulsion. The manufacturer states that specifications may change, so engine, electrical, tank and trailer details should be confirmed for the offered revision.
Planning your configuration
- Specify the repair material, climate, target work pattern and supply logistics. Request the current equipment schedule, operating manual and maintenance-parts list.
- Confirm loaded towing configuration, registration and the exact engine revision. No universal repair-life, daily output, stock or GLOBSEEK delivery claim is made.
Manufacturer sources
Product information and images are based on the following manufacturer references, reviewed on 2026-10-20.
